RL78/G13 CHAPTER 6 TIMER ARRAY UNIT
R01UH0146EJ0100 Rev.1.00 410
Sep 22, 2011

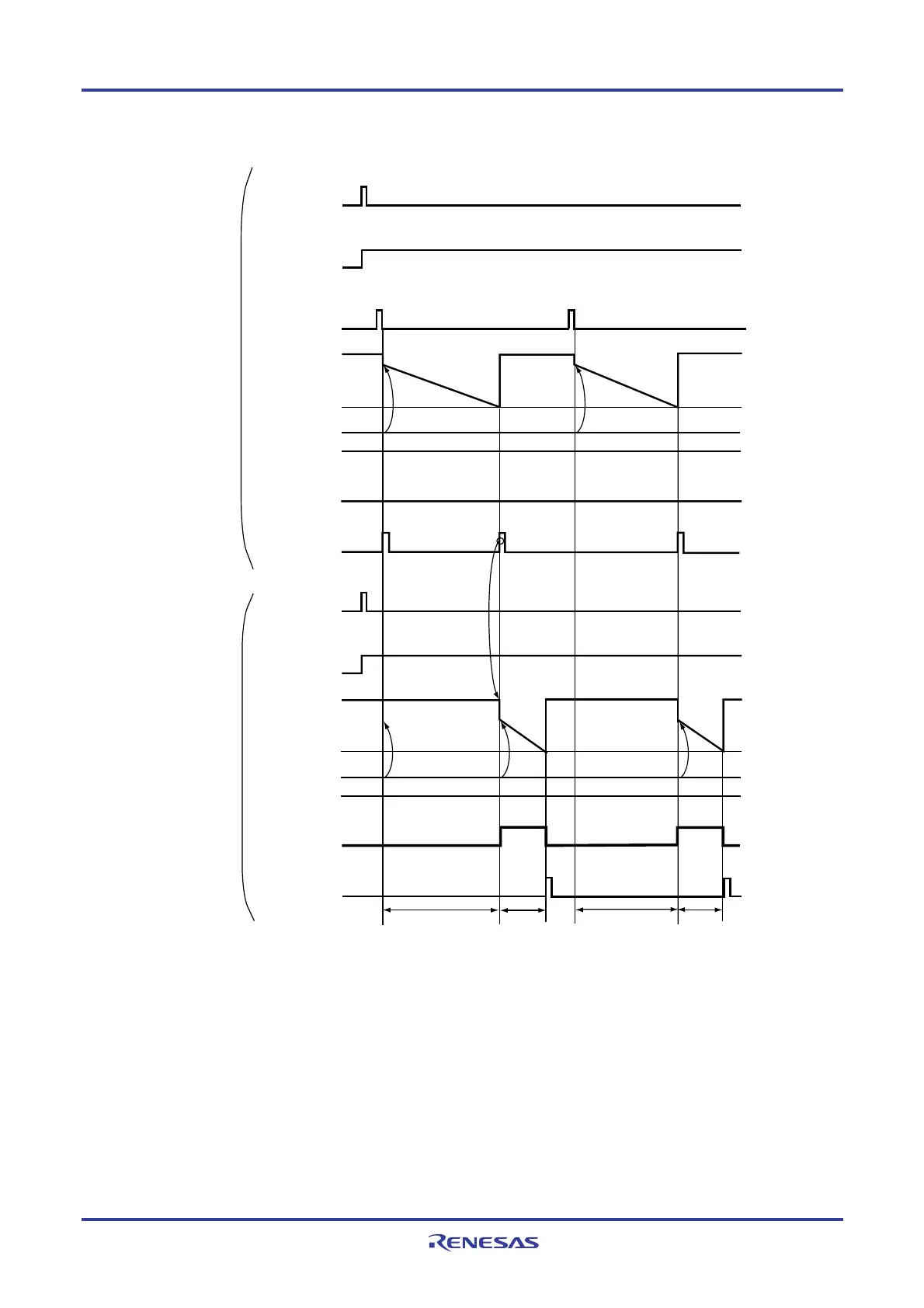

Figure 6-62. Example of Basic Timing of Operation as One-Shot Pulse Output Function
TEmn
TDRmn
TCRmn
TOmn
INTTMmn
a
b
0000H
TSmp
TEmp
TDRmp
TCRmp
TOmp
INTTMmp
0000H
b
Master
channel
Slave
channel
a+2
b
a+2
FFFFH
FFFFH
TImn
TSmn
Remarks 1. m: Unit number (m = 0, 1), n: Channel number (n = 0, 2, 4, 6)
p: Slave channel number (n < p ≤ 7)
2. TSmn, TSmp: Bit n, p of timer channel start register m (TSm)
TEmn, TEmp: Bit n, p of timer channel enable status register m (TEm)
TImn, TImp: TImn and TImp pins input signal
TCRmn, TCRmp: Timer count registers mn, mp (TCRmn, TCRmp)
TDRmn, TDRmp: Timer data registers mn, mp (TDRmn, TDRmp)
TOmn, TOmp: TOmn and TOmp pins output signal
