RL78/G13
CHAPTER 7 REAL-TIME CLOCK
R01UH0146EJ0100 Rev.1.00
456
Sep 22, 2011

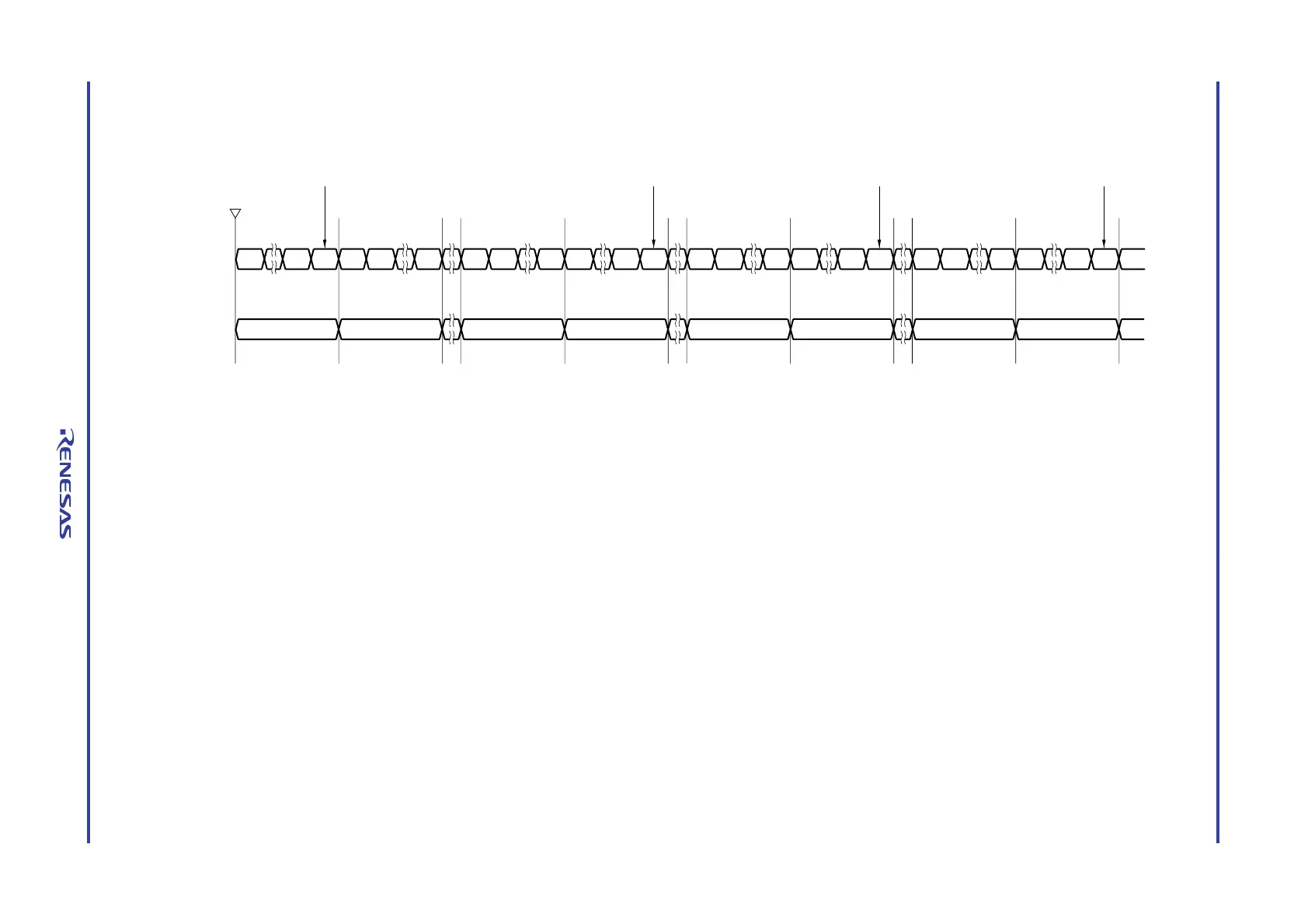

Figure 7-23. Operation when (DEV, F6, F5, F4, F3
, F2, F1, F0) = (1, 1, 1, 0, 1, 1, 1, 0)
Sub-count register
count value
SEC
00
01
8055H
0000H
0001H
7FFFH
0000H
8054H
40
8055H
0000H
8054H
8055H
0000H
8054H
19
0000H
0001H
7FFFH
20
39
0000H
0001H
7FFFH
0000H
0001H
7FFFH
59
00
8055H
0000H
8054H
7FFFH + 56H (86)
7FFFH + 56H (86)
7FFFH + 56H (86)
7FFFH+56H (86)
Count start
