RL78/G13 CHAPTER 12 SERIAL ARRAY UNIT
R01UH0146EJ0100 Rev.1.00 544
Sep 22, 2011

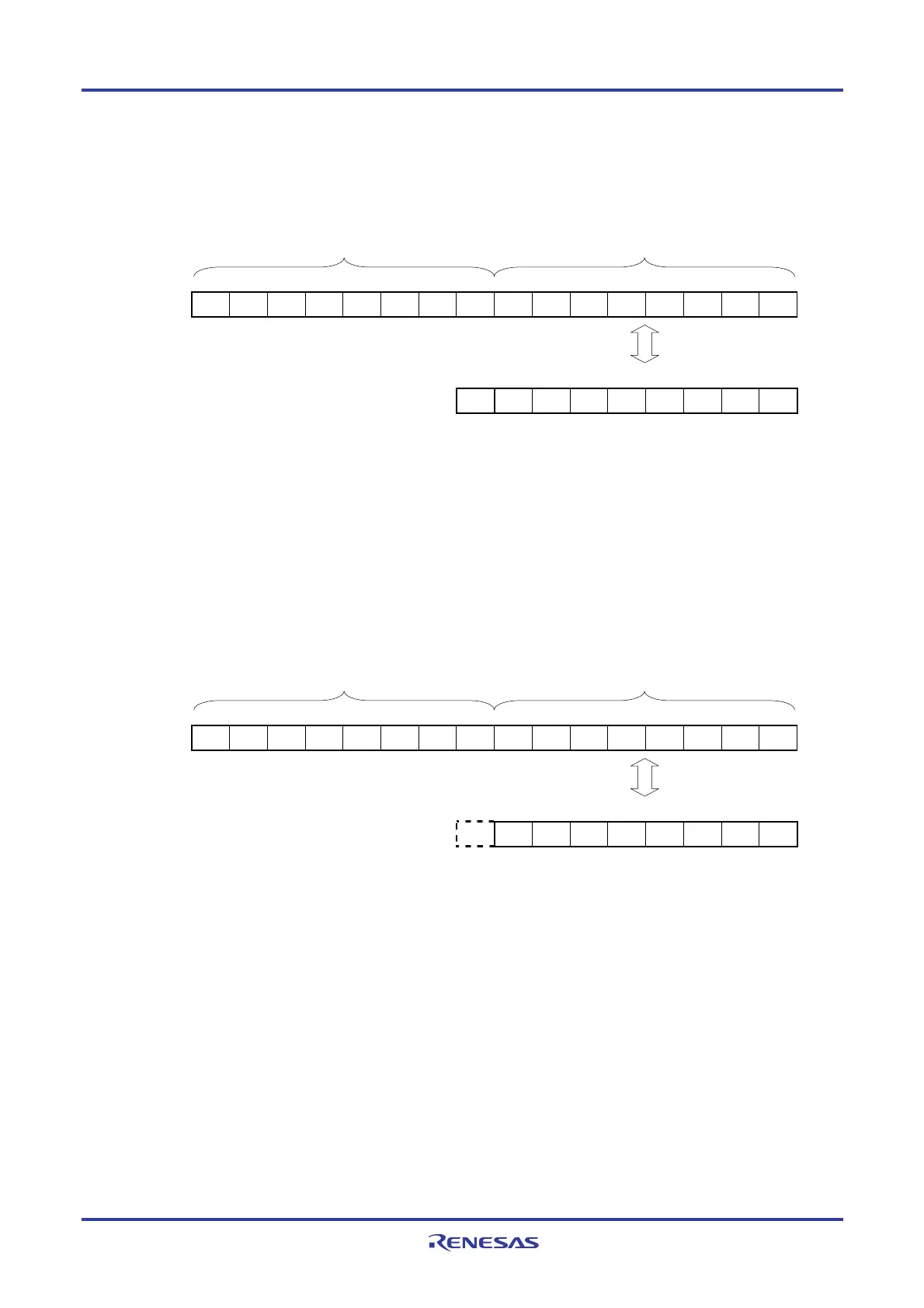

Figure 12-3. Format of Serial Data Register mn (SDRmn) (mn = 00, 01, 10, 11)
Address: FFF10H, FFF11H (SDR00), FFF12H, FFF13H (SDR01) After reset: 0000H R/W
FFF48H, FFF49H (SDR10)
Note
, FFF4AH, FFF4BH (SDR11)
Note
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
SDRmn
8 7 6 5 4 3 2 1 0
Shift register
Note 80, 100, 128-pin products
Remark For the function of the higher 7 bits of the SDRmn register, see 12.3 Registers Controlling Serial
Array Unit.
Figure 12-4. Format of Serial Data Register mn (SDRmn) (mn = 02, 03, 10, 11, 12, 13)
Address: FFF44H, FFF45H (SDR02), FFF46H, FFF47H (SDR03), After reset: 0000H R/W
FFF48H, FFF49H (SDR10)
Note
, FFF4AH, FFF4BH (SDR11)
Note
FFF14H, FFF15H (SDR12), FFF16H, FFF17H (SDR13)
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
SDRmn 0
8 7 6 5 4 3 2 1 0
Shift register
Note 20 to 64-pin products
Caution Be sure to clear bit 8 to “0”.
Remark For the function of the higher 7 bits of the SDRmn register, see 12.3 Registers Controlling Serial
Array Unit.
FFF11H (SDR00)
FFF10H (SDR00)
FFF45H (SDR02)
FFF44H (SDR02)
<R>
<R>
