RL78/G13 CHAPTER 12 SERIAL ARRAY UNIT
R01UH0146EJ0100 Rev.1.00 592
Sep 22, 2011
(3) Processing flow (in single-reception mode)

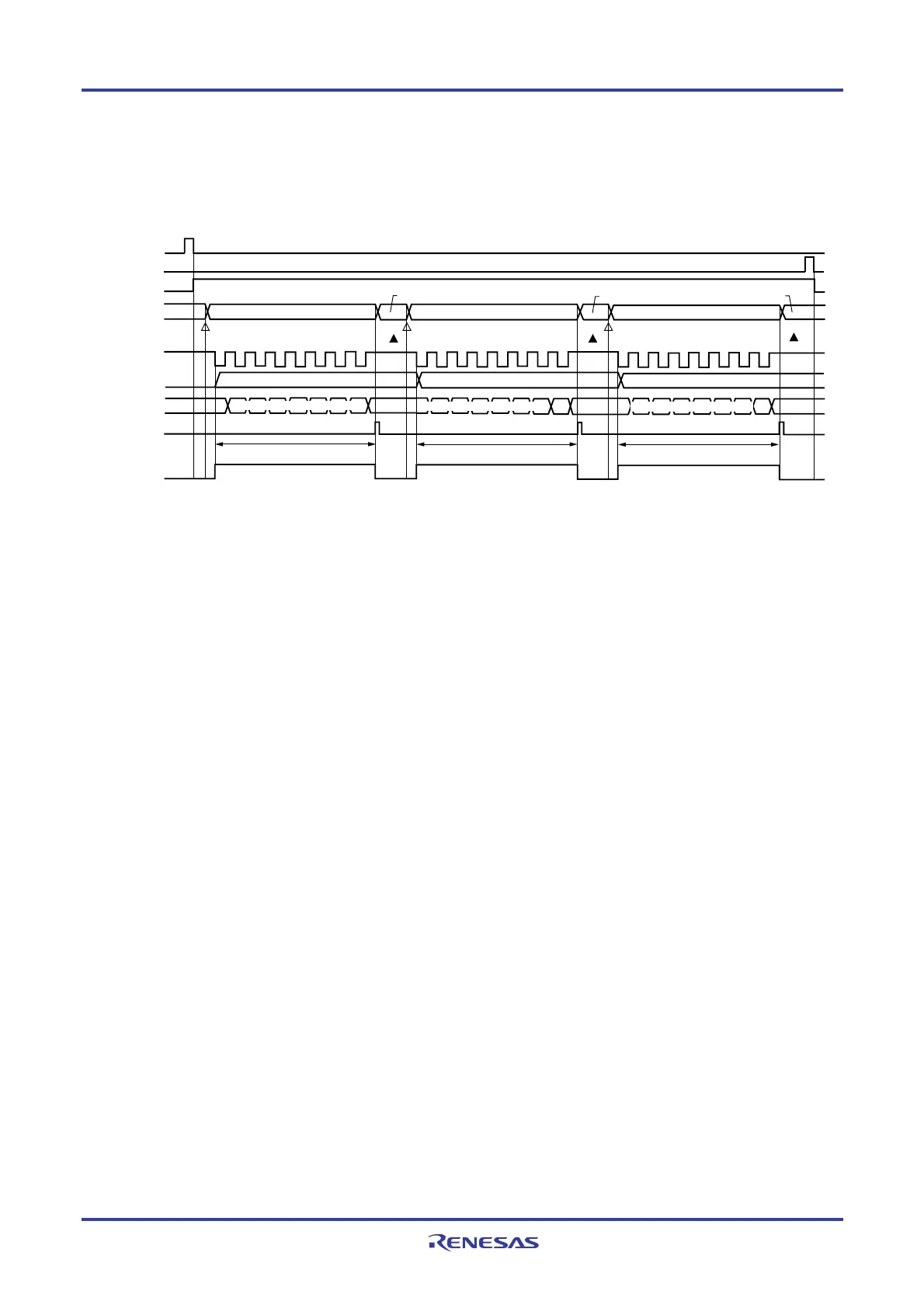

Figure 12-38. Timing Chart of Master Reception (in Single-Reception Mode)
(Type 1: DAPmn = 0, CKPmn = 0)
SSmn
SEmn
SDRmn
SCKp pin
SIp pin
Shift
register mn
INTCSIp
TSFmn
Data reception (8-bit length)
Data reception (8-bit length)
Data reception (8-bit length)
Reception & shift operation
Reception & shift operation
Reception & shift operation
STmn
Receive data 3
Receive data 2
Receive data 1
Dummy data for reception
Dummy data
Dummy data
Receive data 1
Receive data 2
Receive data 3
Write
Read
Write
Read
Read
Write
Remark m: Unit number (m = 0, 1), n: Channel number (n = 0 to 3), p: CSI number (p = 00, 01, 10, 11, 20, 21, 30,
31), mn = 00 to 03, 10 to 13
