RL78/G13 CHAPTER 13 SERIAL INTERFACE IICA

R01UH0146EJ0100 Rev.1.00 759

Sep 22, 2011

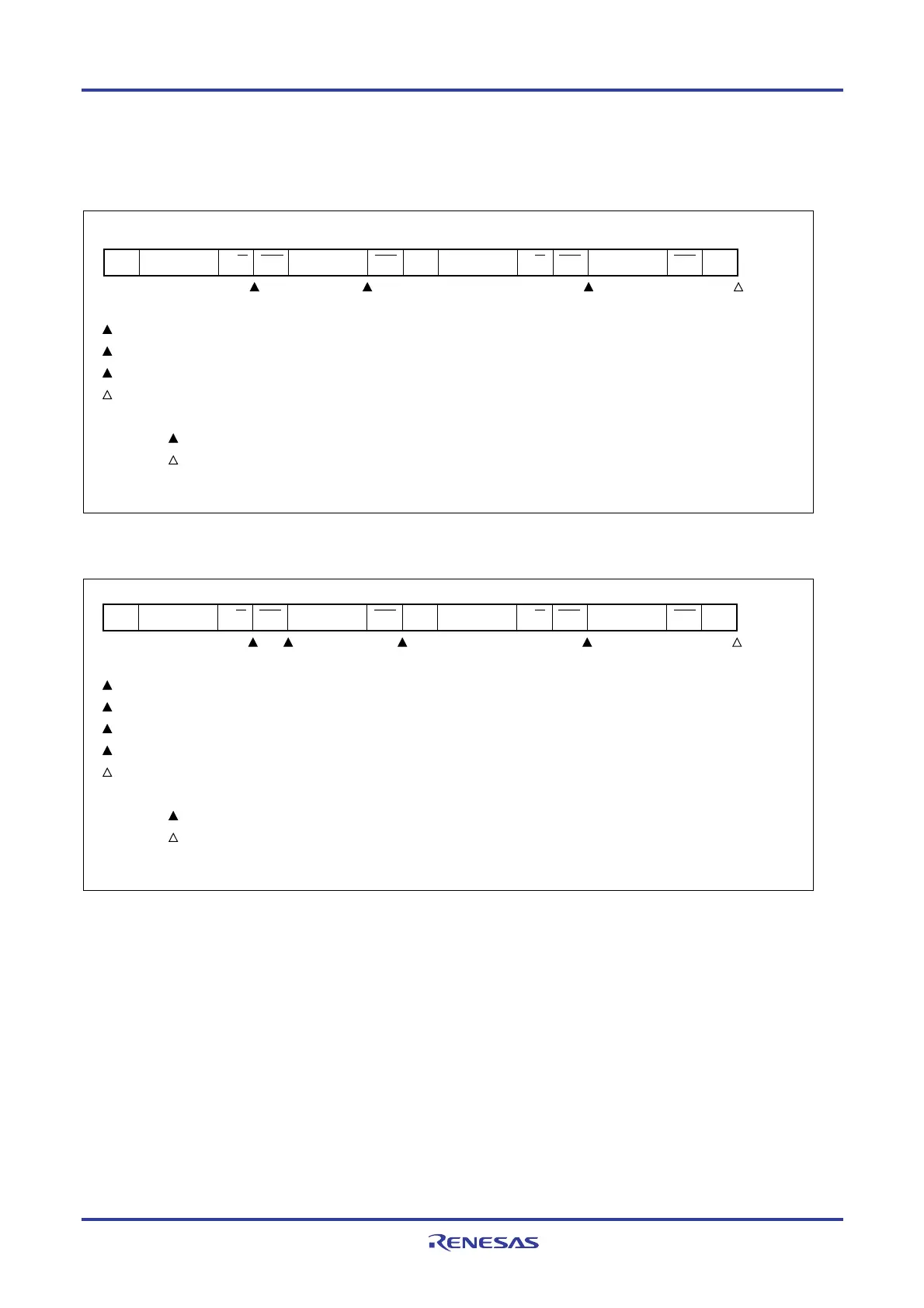

(d) Start ~ Code ~ Data ~ Start ~ Address ~ Data ~ Stop

(i) When WTIM0 = 0 (after restart, does not match address (= not extension code))

ST AD6 to AD0 R/W ACK D7 to D0 AD6 to AD0ACK ACK SPST R/W D7 to D0 ACK

3 4 2 1

1: IICS0 = 00100010B

2: IICS0 = 00100000B

3: IICS0 = 00000110B

4: IICS0 = 00000001B

Remark

: Always generated

: Generated only when SPIE0 = 1

×: Don’t care

(ii) When WTIM0 = 1 (after restart, does not match address (= not extension code))

ST AD6 to AD0 R/W ACK D7 to D0 AD6 to AD0ACK ACK SPST R/W D7 to D0 ACK

3 4 5 2 1

1: IICS0 = 00100010B

2: IICS0 = 00100110B

3: IICS0 = 00100×00B

4: IICS0 = 00000110B

5: IICS0 = 00000001B

Remark

: Always generated

: Generated only when SPIE0 = 1

×: Don’t care
