(2) Delay from the time LVD reset source is generated until the time LVD reset has been generated or released
There is some delay from the time supply voltage (VDD) < LVD detection voltage (VLVI) until the time LVD reset has
been generated.
In the same way, there is also some delay from the time LVD detection voltage (V
LVI) ≤ supply voltage (VDD) until the
time LVD reset has been released (see Figure 21-8).

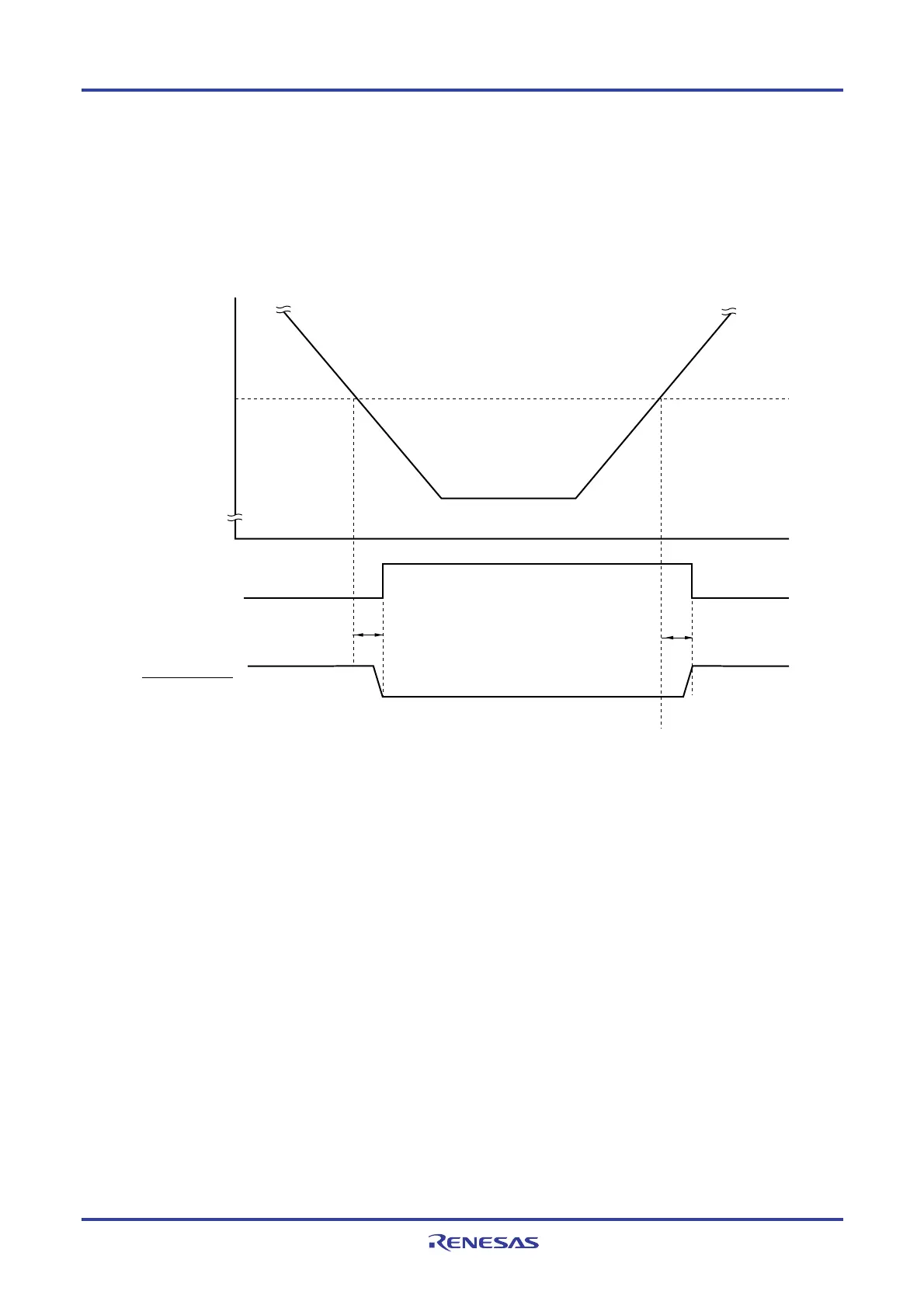

Figure 21-8. Delay from the time LVD reset source is generated until the time LVD reset has been generated or released
Supply voltage (VDD)
V
LVI
LVD reset signal
LVIF flag
<1>
Time
<1>
<1>: Detection delay (300
μ
s (MAX.))
