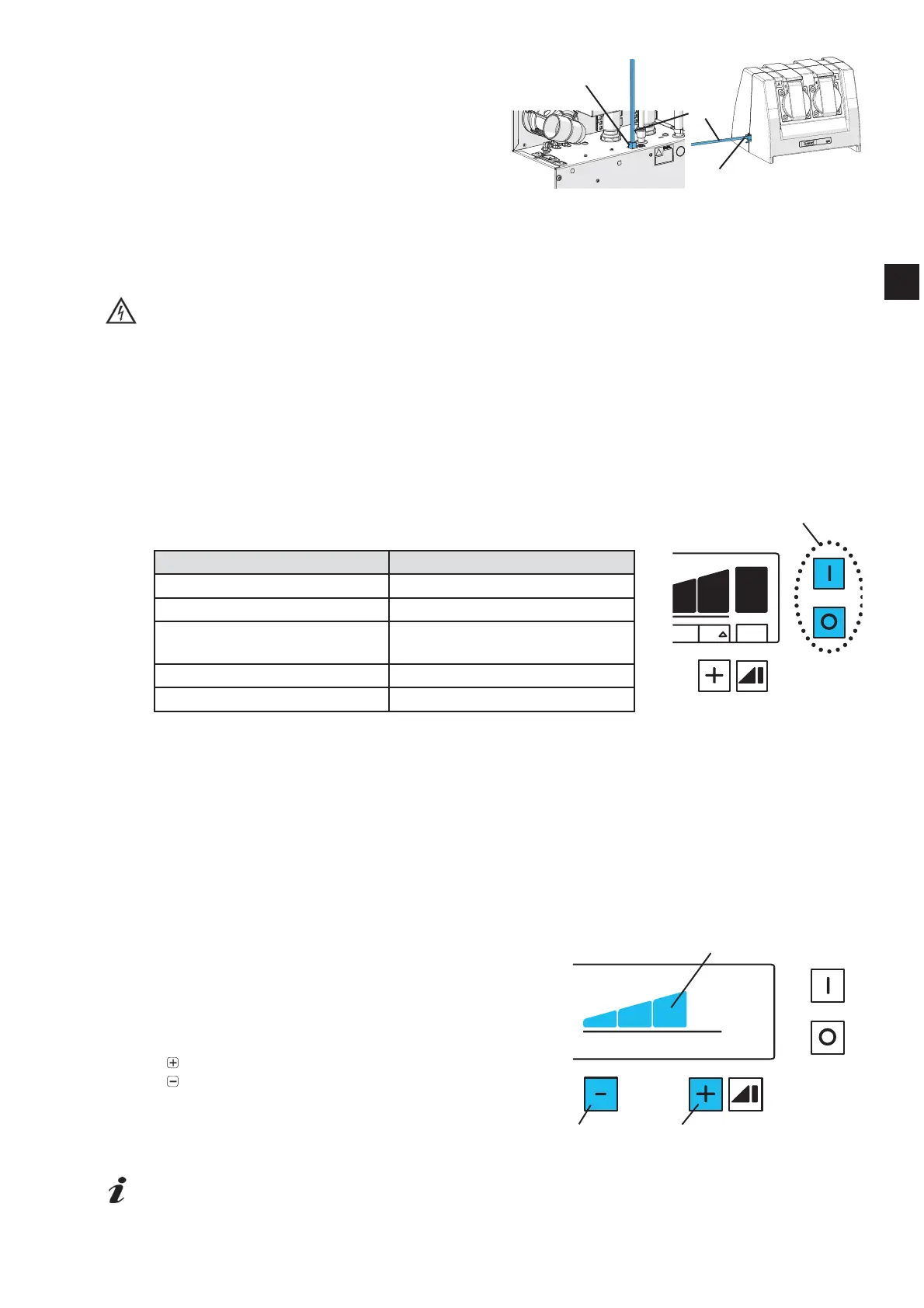

Connecting to the Silent V4:
 Connect the QCB interface cable (10) to
QCB interface (12) on the extraction unit.
 Connect the QCB interface cable (10) to
the connection point (20) of the Quattro
Control-Box.
4.6.2 Connecting the Electric Appliances
 Connect the electric appliances to the appliance socket connections (16, Fig. 5) on the QCB
(A, B, C, D). Observe the allocation of the socket connections – suction channel / pinch valve.
When connecting the electronic equipment to the Quattro Control-Box, ensure that the total
sum of currents from the connected electrical appliances does not exceed the maximum per-
missible load on the Quattro Control-Box (see section 8.2, Technical Data).
5. Operation
The extractor unit is operated via the buttons on the key-pad (Fig. 2).
5.1 Switching the Unit On
The extractor is switched ON and OFF at the On / Off switch (3).
7KHVZLWFKRQSURFHVVWDNHVSODFHLQWKHIROORZLQJVWHSV
Action / Result Note
Switch on On / off switch (3)
'LVSOD\¿UPZDUHYHUVLRQ Approximately 5 sec.
Filter cleaning display “Code 01”
Duration approx. 20 sec.
Self diagnosis Once activated, approx. 30 sec.
Ready for use
5.1.1 Stand-By
In the stand-by mode the display is dark.
Change to the stand-by mode:
 If no button has been pressed and no suction hose is open for a period of 2 min.
Leave stand-by mode:
 Press any button.
 To switch on one of the connected Quattro Control-Box appliances. Once switched on, the suction
hose will open immediately and the extractor turbine will activate.
5.2 Suction Performance
The suction performance can be set at four different
levels. The current suction level is shown in the
display (38). To see the allocation of the suction level
to the suction channels, see section 5.4.1 Single Use
and section 5.4.2 Multi Use.
6HWWLQJWKHVXFWLRQOHYHO

Key (48), to select higher suction level

Key (46), to select lower suction level
The suction performance of a particular suction level
is automatically adjusted i.e. when a suction channel
is either closed or switched off and according to the
GHJUHHRIGXVWLQWKH¿OWHU
 7KHVXFWLRQSHUIRUPDQFHGHSHQGVRQWKHGHJUHHRIGXVWLQWKH¿OWHUWKHVHOHFWHGVXFWLRQOHYHO
and the number of open suction channels. If the extraction unit is running at its maximum level,
it may occur that one particular suction point does not achieve its full potential.
In this case, in order to increase the suction level at this particular suction point, it is necessary
to close one or more other suction channels.
