,QVWDOOLQJWKHQHZ¿QH¿OWHU
 3ODFHWKHUHDUHGJHRIWKH¿QH¿OWHULQWRWKH
JXLGHUDLOVSXVKLQFRPSOHWHO\DQGÀLSXS
and close.
 ,QVHUW¿[LQJVFUHZV)LJDQGVFUHZ
closed.
 Replace the cover plate and close with the
screws.
 First place the base of the front panel onto
the unit, then push the upper part of the panel
against the snap fasteners to close.
If it is not possible to close the cover plate,
WKHQWKH¿QH¿OWHUKDVQRWEHHQFRPSOHWHO\
UHWXUQHGLQWRWKHKRXVLQJRUWKH¿QH¿OWHULV
VLWXDWHGWRRORZGXHWRWKHIDFWWKDWWKH¿[LQJ
screws (25, Fig. 25) have not been tightened
VXI¿FLHQWO\

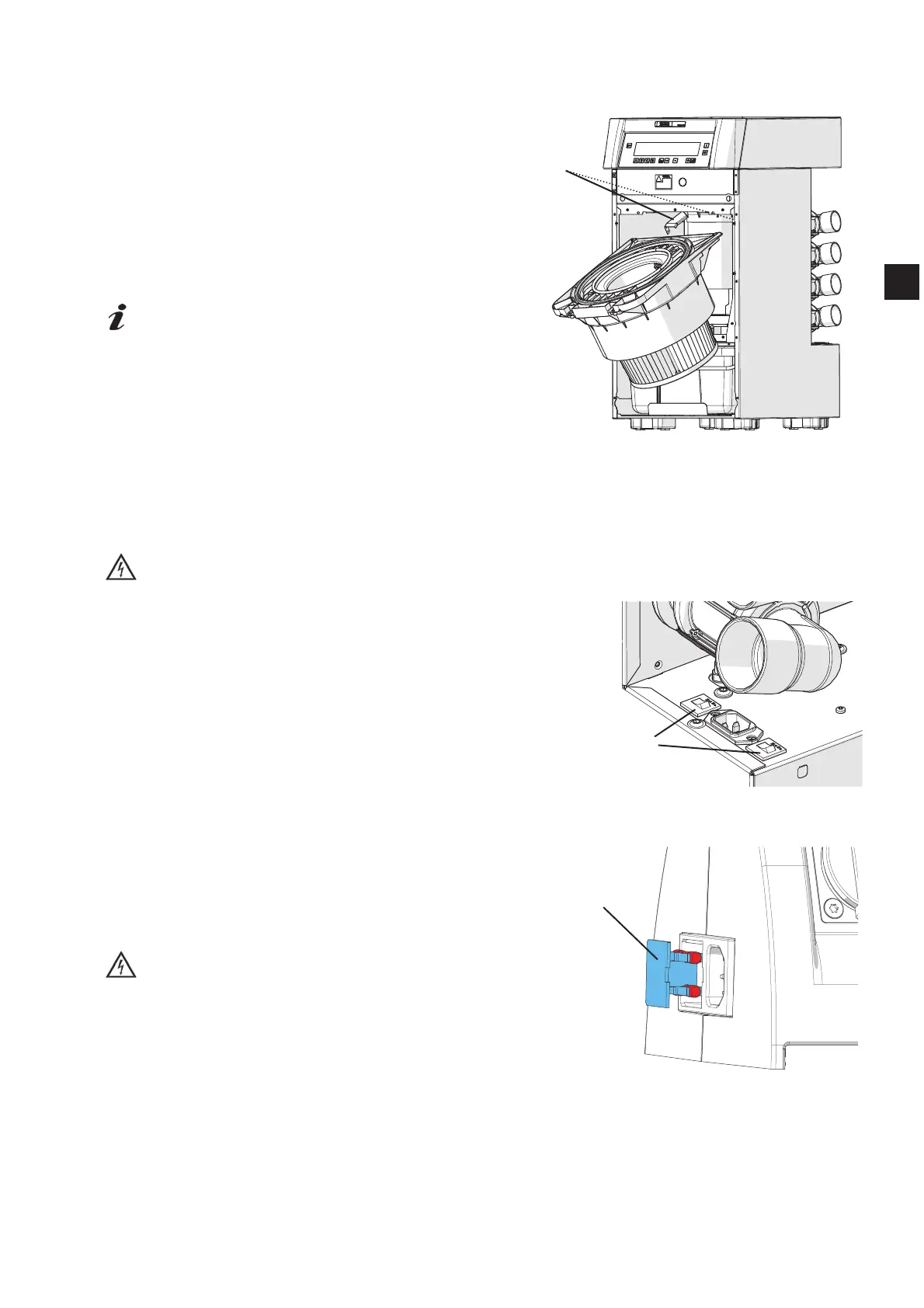

Fig. 26
27
6.3 Safety Fuses
If a safety fuse is repeatedly released, this means a safety switch within the device is defect.
Please send the device in for repair!
6.3.1 Extraction
The extractor is safeguarded by two device overload
switches (14).
If an overload switch is released, it can be reset by pressing
the button back in.
14
Fig. 2
7
6.3.2 Quattro Control-Box
Ź Only the 230 V Version
7KH4XDWWUR&RQWURO%R[LVSURWHFWHGZLWK¿QHZLUHIXVHV
5HSODFHIXVHVRQO\ZLWKVXLWDEOHIXVHVVWDWLQJWKHVSHFL¿HG
data, see section 8.2. Technical Data.
Never install fuses with greater values.
&KDQJLQJWKHIXVHV
 Unplug the power cable from the QCB.
 Using a screwdriver, dismantle the fuse holder (27) and
pull out as far as it will go.
 Remove the defect fuse and replace with a new fuse in
the same position (close to the housing).
 Insert the fuse holder as far as it will go, until it locks in
place.
Fig. 28
27
