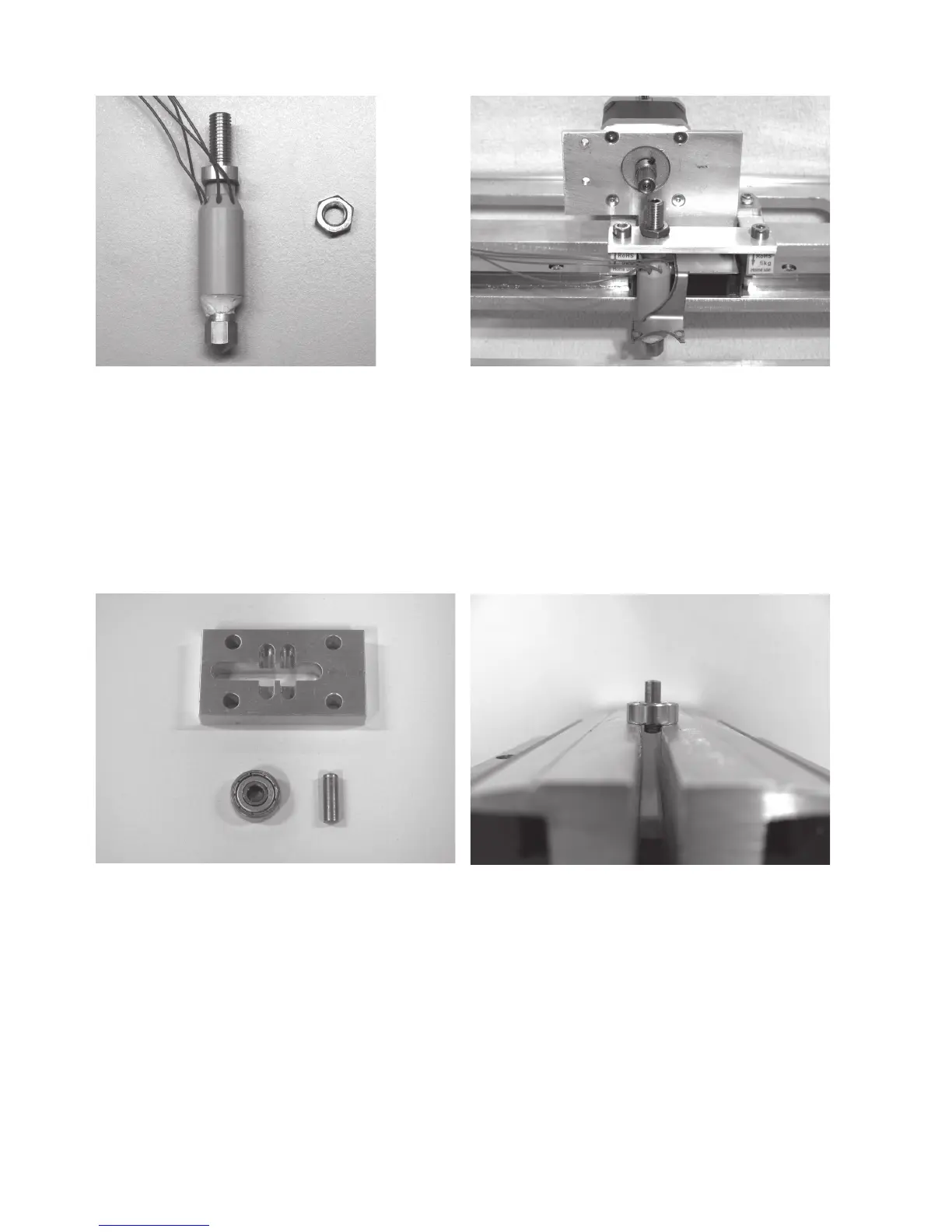

Install extruder.
1x extruder
1x flat nut M8
Push extruder through the extruder holder from below and at
-
tach it with the flat nut.
Align the extruder so that the filament material can be inserted
into the extruder bore straight from the top past the pinion of
the actuator.
During assembly, observe that the connection lines of the ex-
truder are not caught or damaged.
Assembly of the ball bearing holder
1x ball bearing 624ZZ (diameter outside 13 mm)
1x cylinder pin 4x14 mm
1x ball bearing holder
Carefully drive the cylinder pin into the ball bearing with a ham-
mer until it is centred in the ball bearing. For this, support the
ball bearing, e.g. on a vice and open the vice slightly so that the
cylinder pin can be driven through the ball bearing.
