18

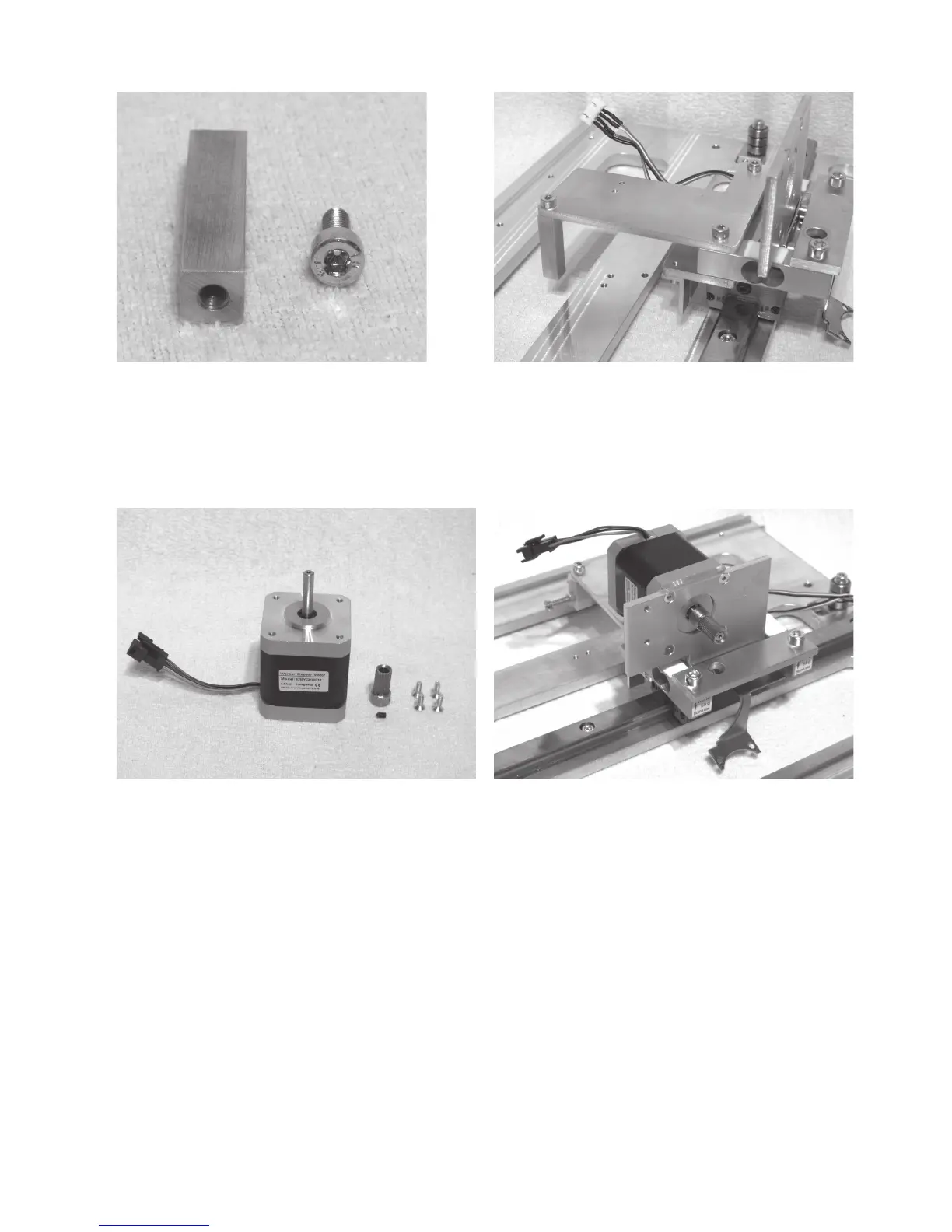

Install the end stop actuation
1x end stop actuation
1x cylinder head screw M4x10
Install the unit with the cylinder head screw as shown.
Assembly of the feed motor
1x actuator
1x feed knurl
1x threaded pin M3x5
4x countersunk head screw M3x8
Push the feed knurl onto the axis of the actuator and attach
it with the threaded pin. Apply threaded pin with threadlocker
varnish.
The motor axis must end flush with the upper edge of the feed
knurl.
Push the motor through the motor holder from behind and at-
tach it with the countersunk head screws. Apply screws with
threadlocker varnish.
The cable exit at the motor must point up as shown.
