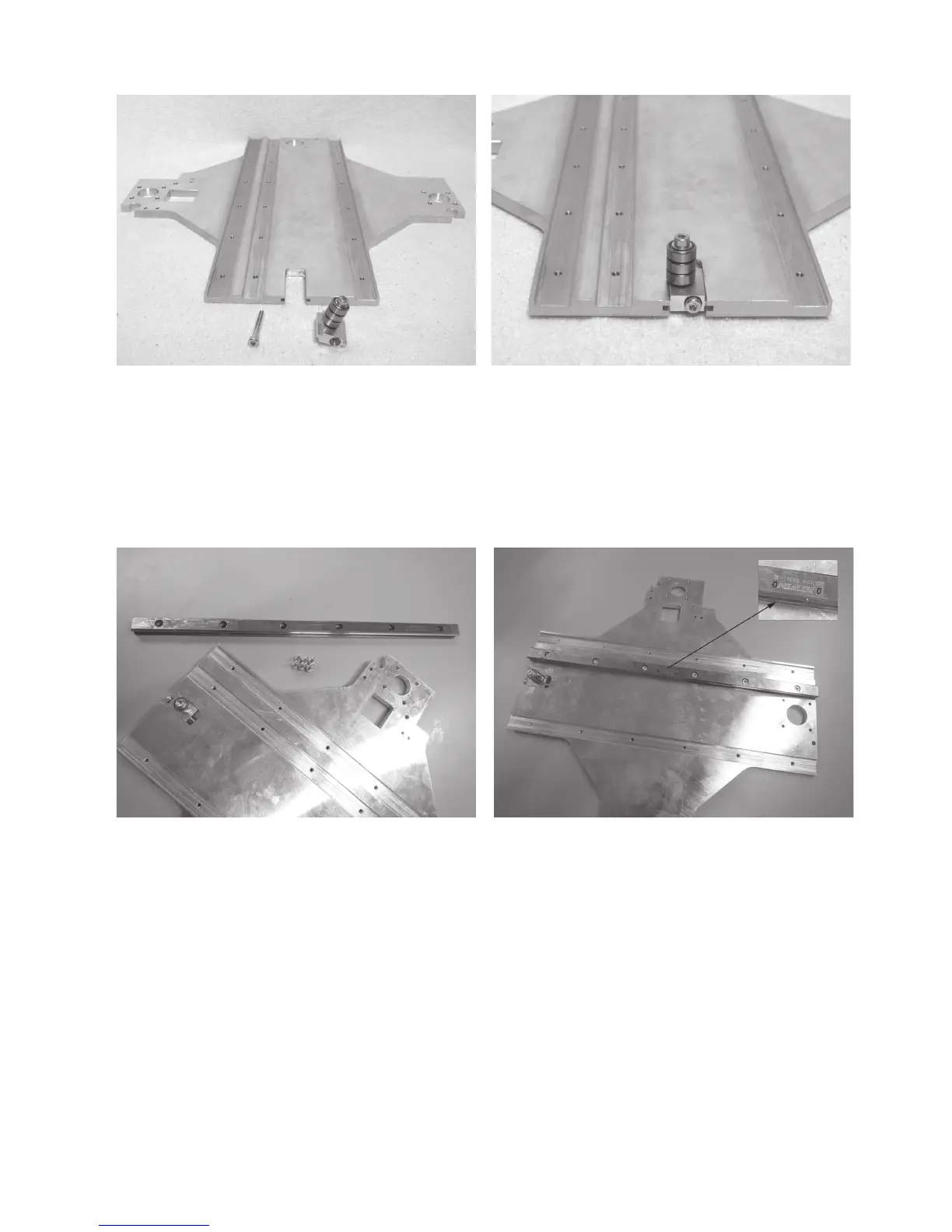

Attachment of belt tensioner to the Y-plate
1x Y-plate
1x assembly belt tensioner (previous construction step)
1x cylinder head screw M4x30
Push the belt tensioner assembly into the intended section of
the Y-plate and turn the screw into the belt tensioner.
The ball bearings must point to the grooved side of the Y-plate
and the bore in the belt tensioner must be on the right (see
figure).
Attachment of the guide rail
1x Y-plate
1x guide rails
6x cylinder head screws M4x12
Insert the guide rail into the middle groove of the Y-plate and
attach it with the screws.
The imprinted arrows on the guide rail must point to the plate
centre.
