25

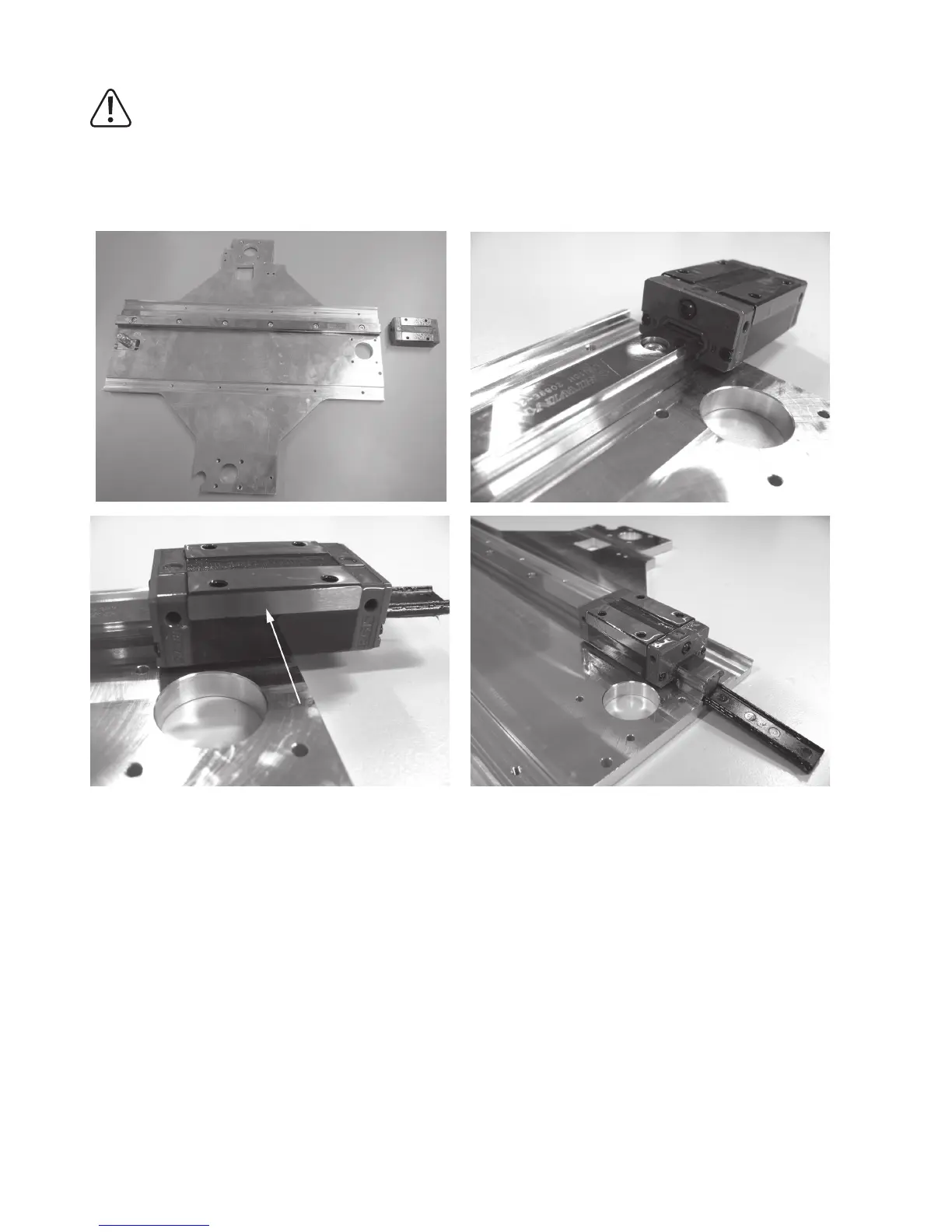

Push the guide carriage onto the guide rail
The assembly aid (plastic part in the guide of the guide carriage) must never be removed before pushing on the guide
carriage, since the gearing balls will fall out of the carriage otherwise. This would be irreparable.
This also applies when the guide carriage is pushed from the guide rail after assembly. For reasons of safety, the guide
carriage should be secured, e.g. with adhesive tape before further installation.
The guide carriage has a polished area on one side (see arrow in the figure on the lower left). Turn the guide carriage
so that the arrows on the guide rails point towards the ground area of the guide carriage before pushing it on.
1x Y-plate
1x guide carriage complete with assembly aid
Carefully push the guide carriage onto the guide rail and push
the assembly aid (plastic part) from the guide carriage while
doing so.
