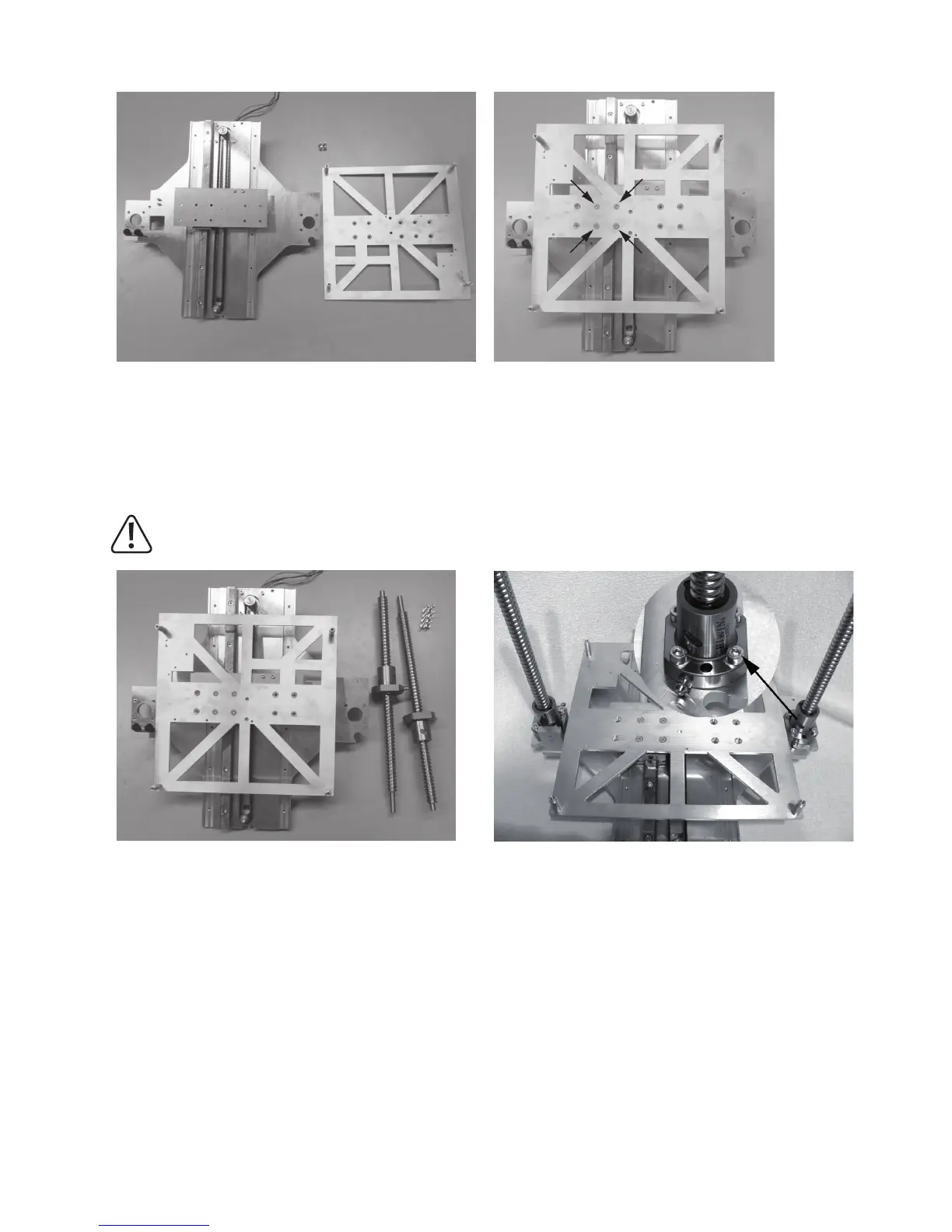

Assembly of the undertable
1x undertable
1x Y-plate
4x countersunk head screw M4x12
Attach the undertable with the 4 countersunk head screws to
the undertable holder as shown.
Apply screws with threadlocker varnish.
Assembly of the thread circulation spindles
The nuts on the threaded circulation spindles must never be removed from the threaded circulation spindles, since the
bearing balls would fall out otherwise. This would be irreparable.
2x threaded circulation spindle
1x Y-plate
8x cylinder head screw M5x16
Attach threaded circulation spindles to the Y plate as shown
with 4 screws each.
Observe the position of the lubrication nipples. They must both
point to the inside of the device.
The flattened sides of the attachments must end flush with the
outer edge of the Y-plate.
