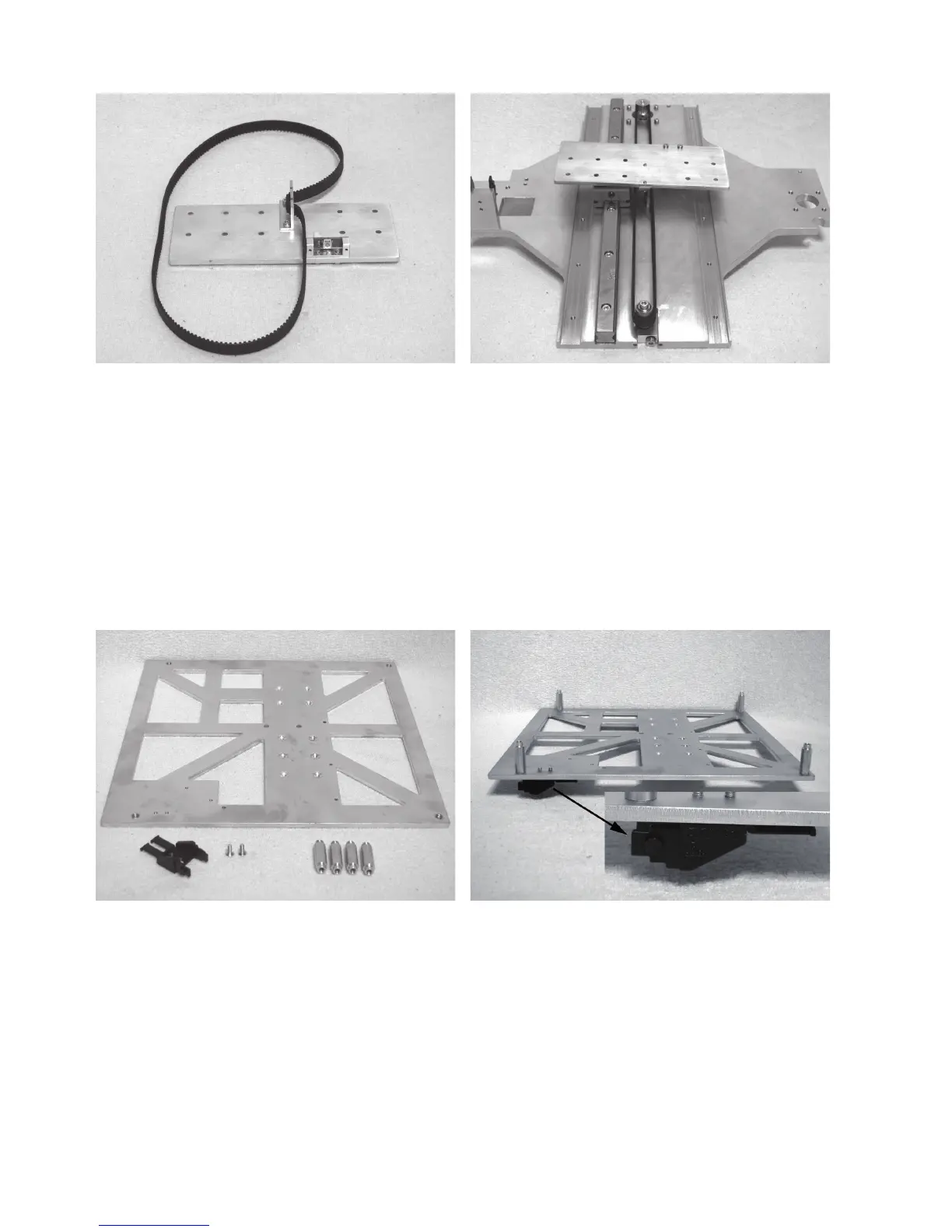

Application of the toothed belt
1x undertable holder from the previous step
1x toothed belt 675 mm
Caution:
The toothed belt must not be tensioned too strongly. If the belt
tensioner bends, the belt tension must be reduced under all
circumstances.
A method for more precise setting of the belt tension is found
in the chapter „Maintenance“.
Insert toothed belt into the belt tappet angle as shown on the
left.
Relieve belt tensioners entirely.
Turn the undertable holder and put the toothed belt onto pinion
and belt tensioner as shown.
The undertable holder is only placed on the guide carriage
here (do not screw on yet).
Tension toothed belt by turning the belt tensioner screw until it
can still easily be turned by 180° with two fingers.
Assembly of the undertable
1x undertable
1x drag chain end piece with nipple
4x spacer bolts
2x countersunk screw M3x8
Screw in spacer bolts into the top of the undertable (side with
recessed bores).
Install the drag chain end piece on the underside of the undert
-
able.
