Assembly of the Mechanical Basic Construction

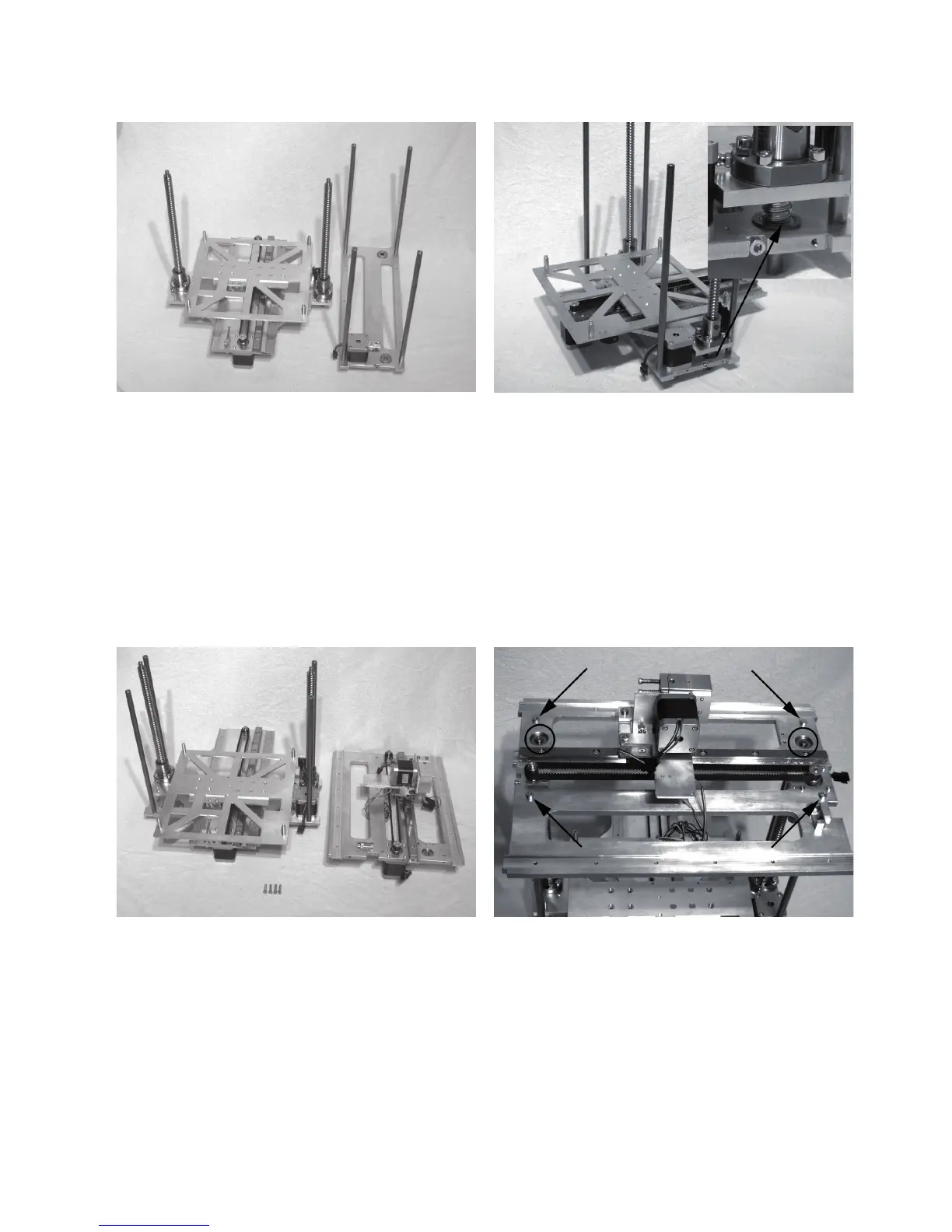

Connection of the bottom plate to the Y-plate
1x bottom plate
1x Y-plate
When inserting the thread circulation spindles into the bottom
plate, always observe that the spindles are turned out precise
-
ly the same length and are not oset against each other.
If this is not the case, the thread circulation spindles must be
adjusted to each other by turning.
Thread the Y-plate into the spacers of the bottom plate with the
two mill-outs from above.
The thread circulation spindles must be cleanly flush against
the grooved ball bearings in the bottom plate after assembly.
Assembly of the X-plate
1x basic frame
1x X-plate
4x cylinder head screw M5x16
Push the X-plate onto the basic frame of the bottom plate and
Y-plate (see previous construction step) and attach it to the
spacer bolts with the screws.
Apply screws with threadlocker varnish.
The thread circulation spindles must be cleanly flush against
the grooved ball bearings in the X-plate after assembly.
