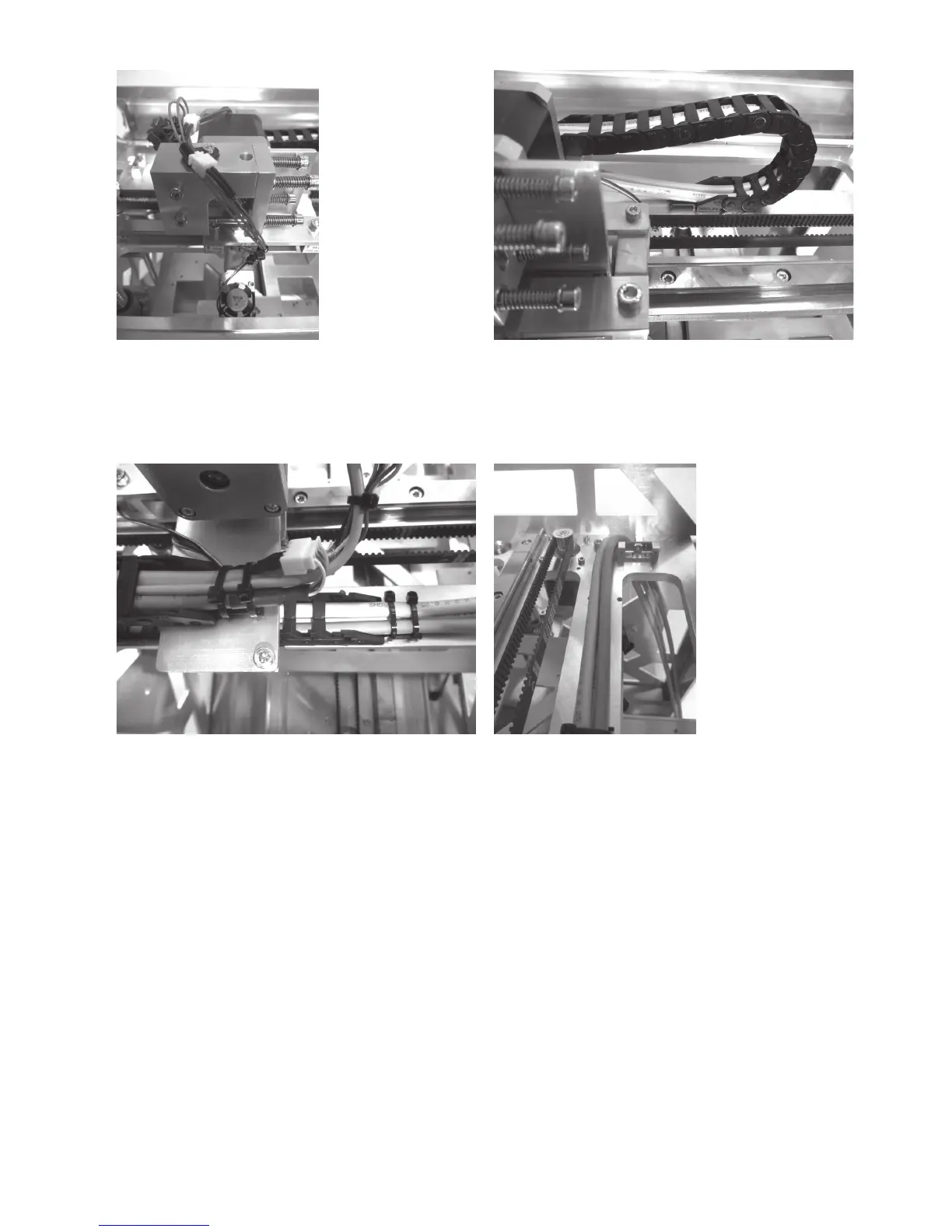

Place lines cleanly with small cable ties (99 mm).
Guide the lines to the extruder and the fan through the illus-
trated line eyelet and attach the eyelet to the feed basic part
with a screw M3x6.
Latch the drag chain on the free end piece.
Apply two large cable ties (142 mm) for tension relief each at
the two drag chain end pieces.
Place the free line ends through the opening in the X-plate past
the limit switch and down.
