Heating bed, limit switch for the Y-direction and Y-motor

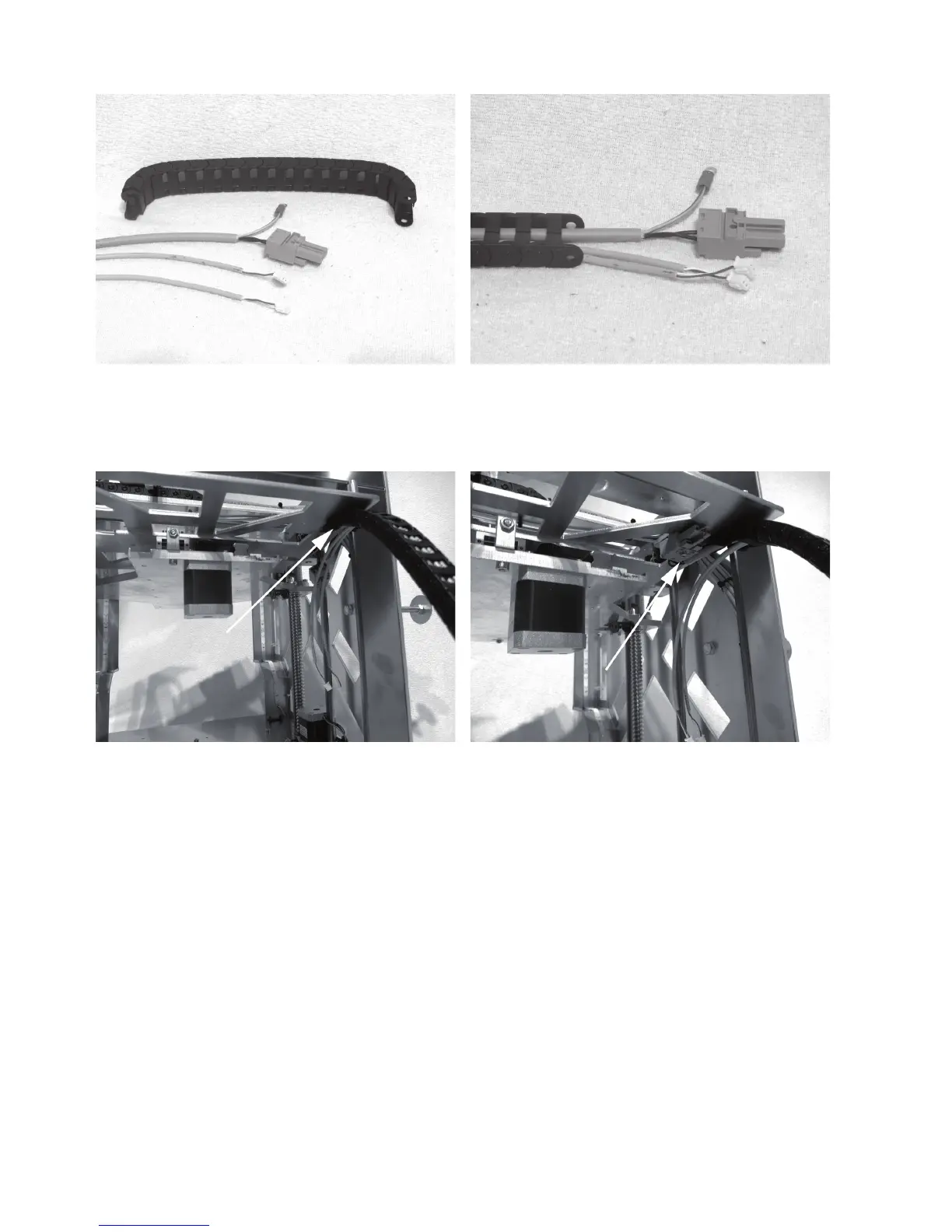

Drag chain 20 links open on the outside
Lines 12, 13 and 20
Push the lines into the drag chain so that the end link points to
the line ends without label with the holes.
Latch the drag chain at the end piece of the undertable and
pull the lines out of the drag chain far enough to be placed
cleanly.
Install the plug connectors for the power supply of the heating
plate with a cylinder head screw M3x16 at the bottom of the
undertable.
