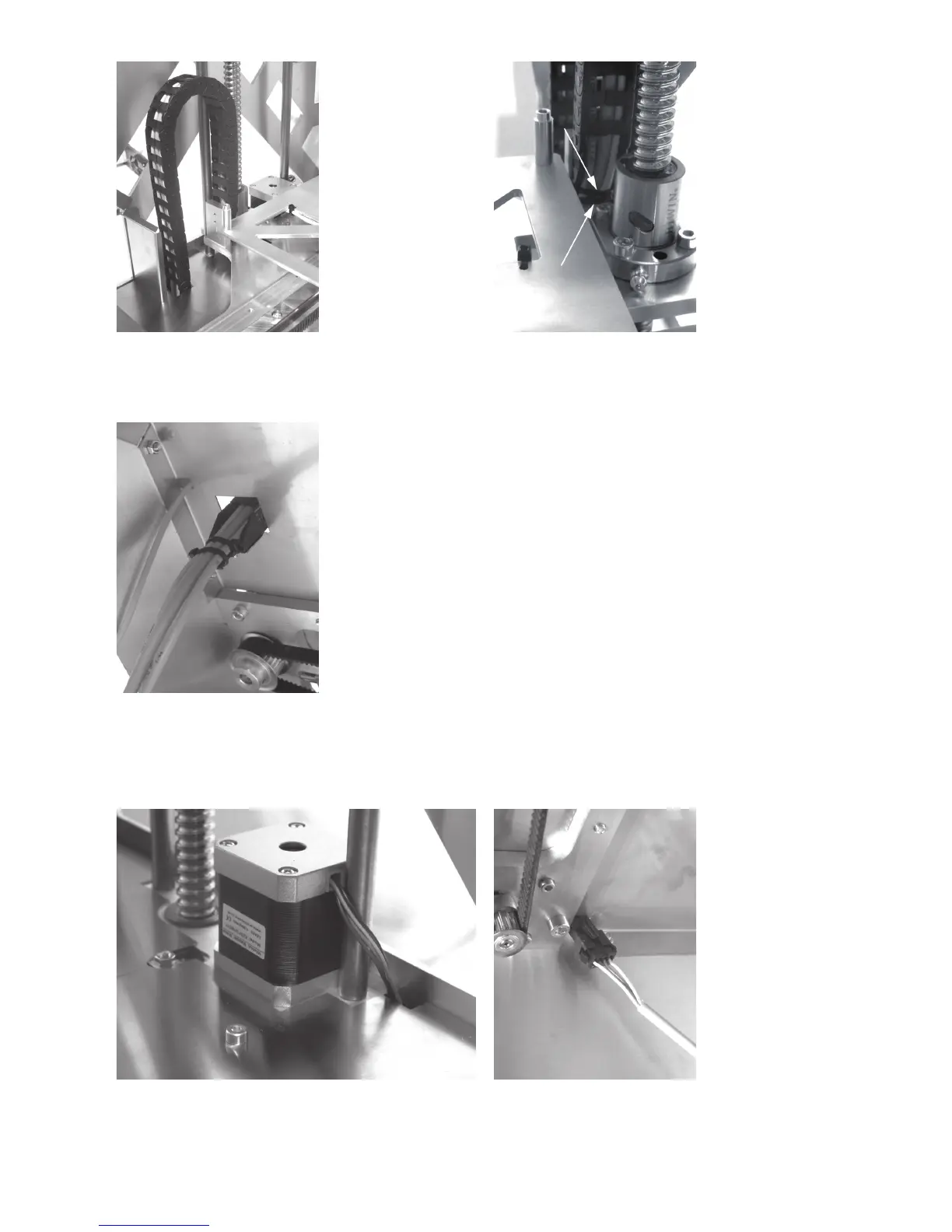

Latch the other side of the drag chains in the end piece of the
operating cover.
Apply two large cable ties (142 mm) at the drag chain end piece
at the Y-plate for tension relief.
Apply two large cable ties (142 mm) at the drag chain end piece
at the operating cover for tension relief.
Connection of the Z motor
Push the plug connector at the Z-motor through the opening in
the rear cover.
Connect line 16 to the plug connector of the Z-motor.
