- 11 -

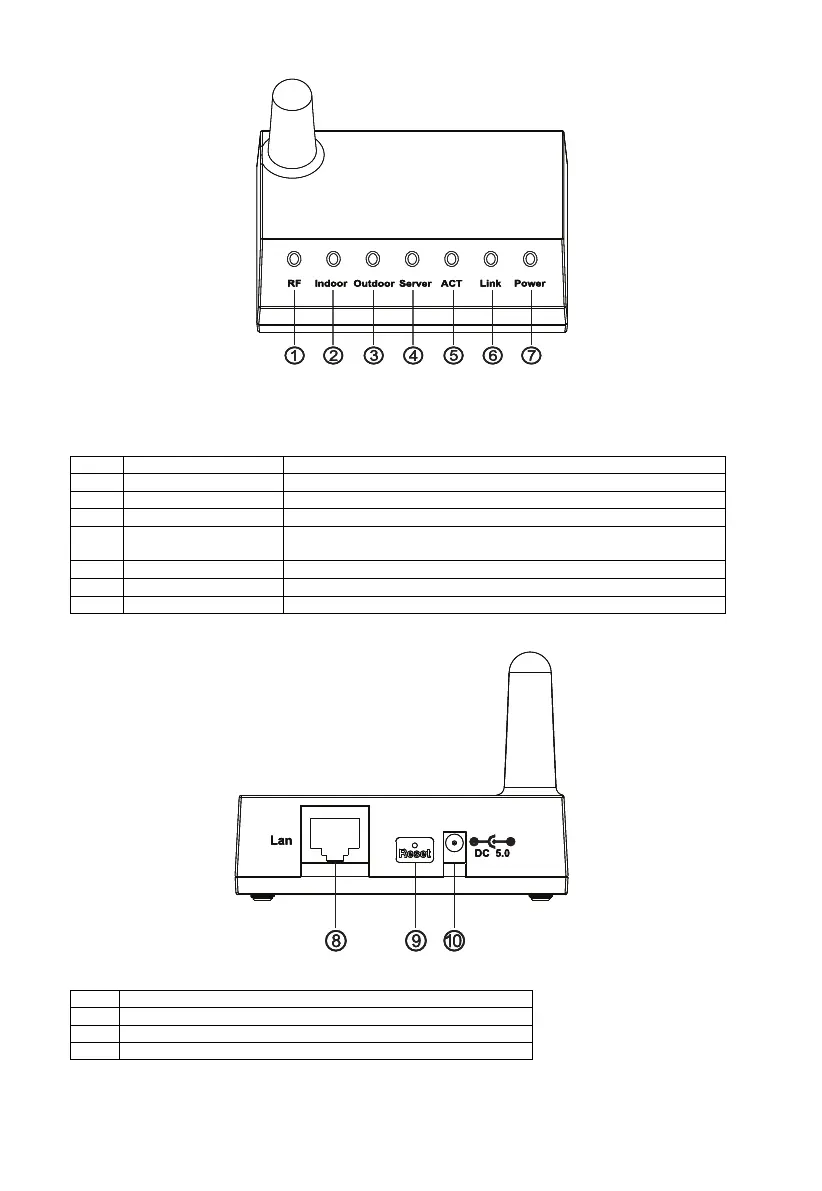

Figure 13
Ref. LED Description
1 RF On when radio frequency receiver is operating properly
2 Indoor On when indoor sensor received
3 Outdoor On when outdoor sensor array received
4 Server On when connected to Wunderground.com® internet hosting
service
5 ACT Flashes when there is internet activity
6 Link Connected to the Internet (or router)
7 Power AC Power connected
Ref. Description
8 LAN connection (connect to router)
9 Reset button
10 AC Power connection
Figure 14
