- 8 -

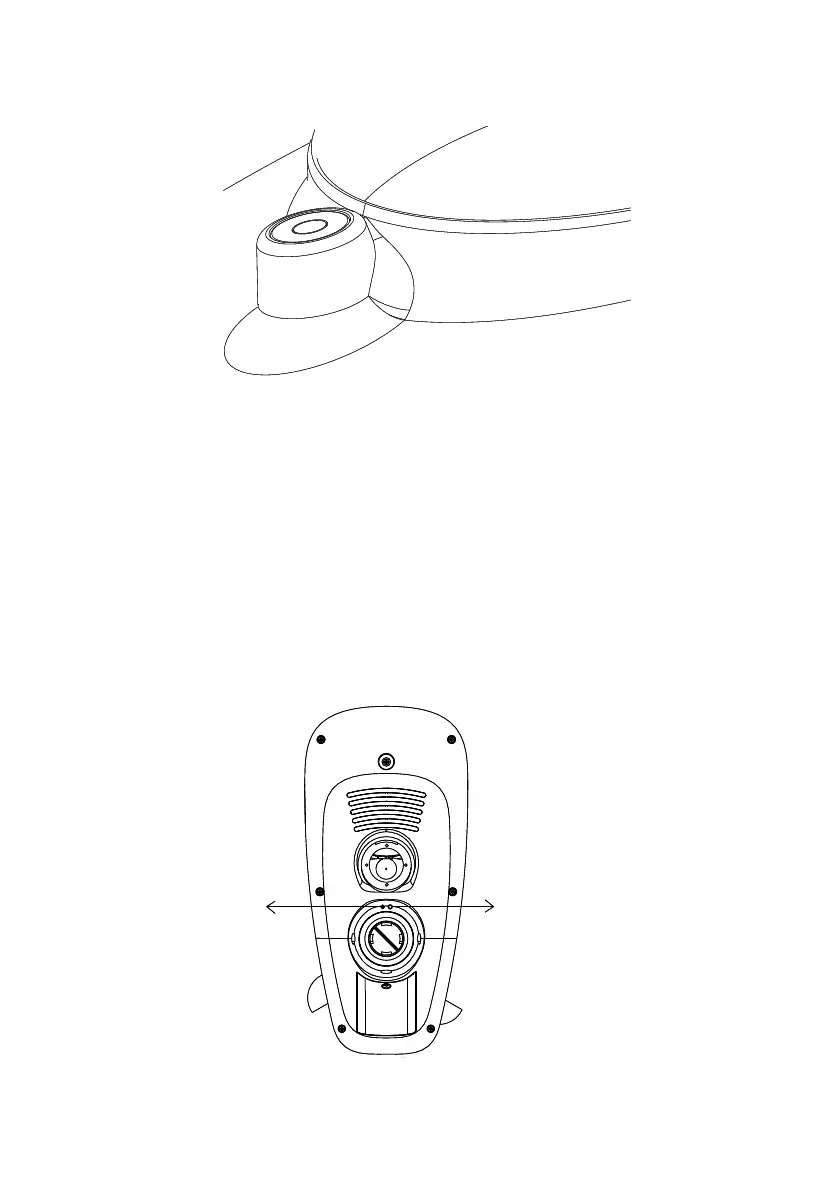

Reference Figure 9. Make sure the sensor array is completely level upon final installation.
Failure to do so will result in inaccurate rain gauge readings.
Figure
4.3.5 Reset Button and Transmitter LED
In the event the sensor array is not transmitting, reset the sensor array.
With an open ended paperclip, press and hold the RESET BUTTON for three seconds to completely
discharge the voltage.
Take out the batteries and wait one minute, while covering the solar panel to drain the voltage.
Put batteries back in and resynchronize with the receiver by powering down and up the receiver with the
sensor array about 3meter away.
Figure
LED RESET BUTTON
LED RESET BUTTON
9
10
