- 6 -

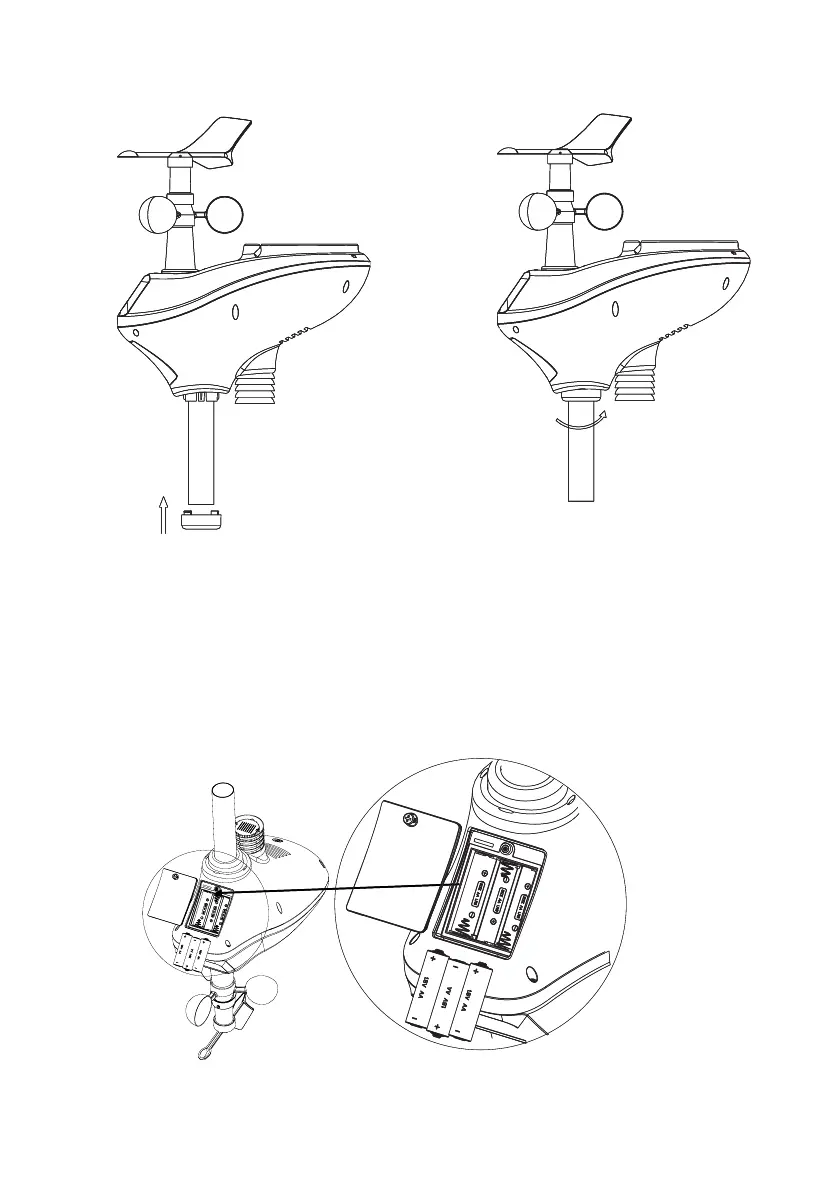

Reference Figure 5. Turn the mounting pole collar to lock the pole into place by rotating clockwise.
Figure 5
4.3.3 Install Batteries
Reference Figure 6. Locate the battery door on the bottom of the sensor array. Turn the set screw
counter clockwise to open the battery compartment. Insert 3xAA batteries (not included).The LED
indicator on the bottom of the
sensor array will turn on for ten seconds
and normally flash once per
16 seconds (the transmission update period).
Close the battery door and tighten the set screw.
Figure 6
To Next Page
