Renogy ROVER BOOST User Manual

09

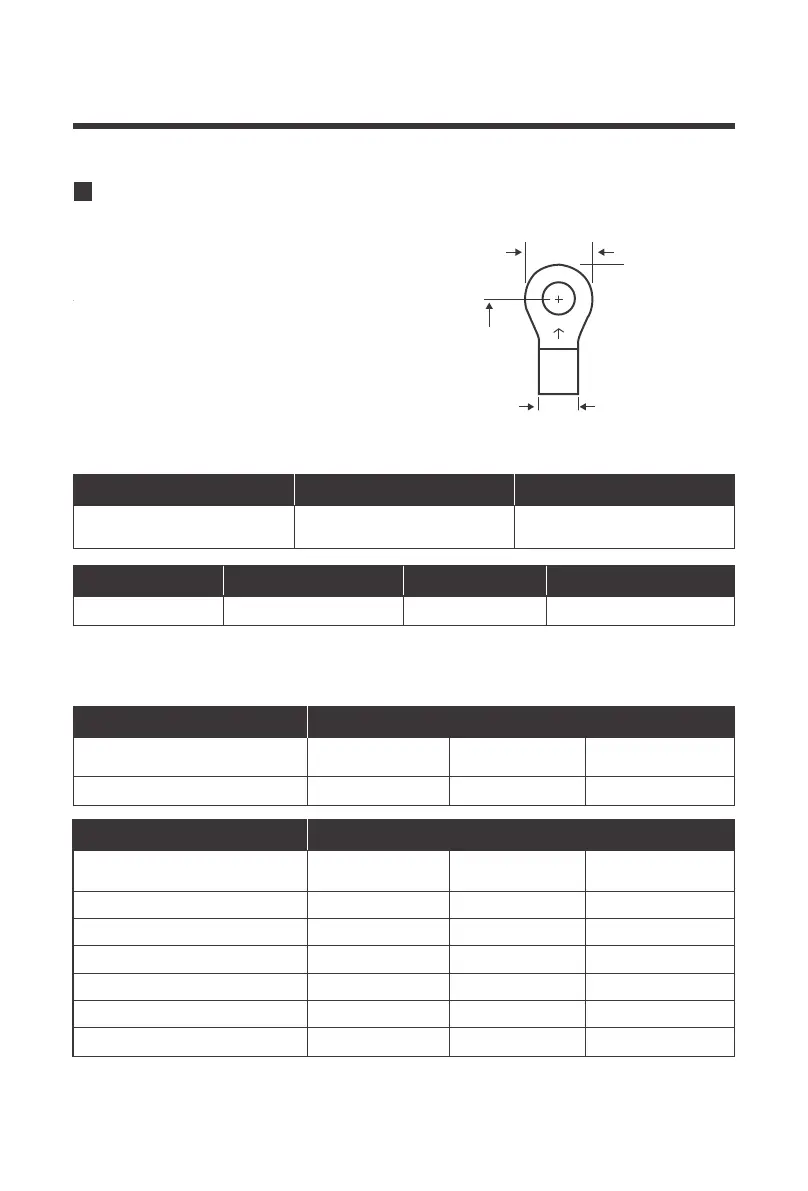

The Rover Boost accepts ring terminals or lugs.
Due to the terminal housing, ring terminals must
comply with the following instructions
The following recommendation is based off 3% maximum voltage loss. The recommended
wire sizing may not cover all unit applications that may exist.
Recommended Gauge and Ring Terminal Sizes
Ring Width
< 19mm
< 3/4”
< 14.5mm
< 9/16"
6mm
1/4"
Cable Width Ring Size Recommended
Specification
Battery Wiring 12 AWG 10A 15A-20A
Rated AmpsRecommended AWG Recommended Fusing
Specification
Battery Output Charging Amps
0 ~ 10 ft /
0 ~ 3m
11 ~ 20 ft /
3 ~ 6m
21 ~ 30 ft /
6 ~ 9m
12 ~ 10 AWG14 AWG 10 AWG10A
Recommended AWG
Specification
PV Input Charging Amps
0 ~ 10 ft /
0 ~ 3m
11 ~ 20 ft /
3 ~ 6m
21 ~ 30 ft /
6 ~ 9m
16 ~ 14AWG16AWG 14 ~ 12AWG100W ~ 5A
14 ~ 12AWG16 ~ 14AWG 10AWG200W ~ 10A
12 ~ 10 AWG14 ~ 12AWG 10 ~ 8AWG300W ~ 15A
10 ~ 8AWG14 ~ 12AWG 6AWG400W ~ 20A
8 ~ 6AWG12 ~ 10 AWG 6AWG500W ~ 25A*
8 ~ 6AWG10AWG 6 ~ 4AWG600W ~ 30A*
Recommended AWG
Cable Width
Ring Size
Ring Width

Renogy ROVER BOOST Specifications

General

Brand	Renogy
Model	ROVER BOOST
Category	Controller
Language	English
