7 • Installing the design extraction grille

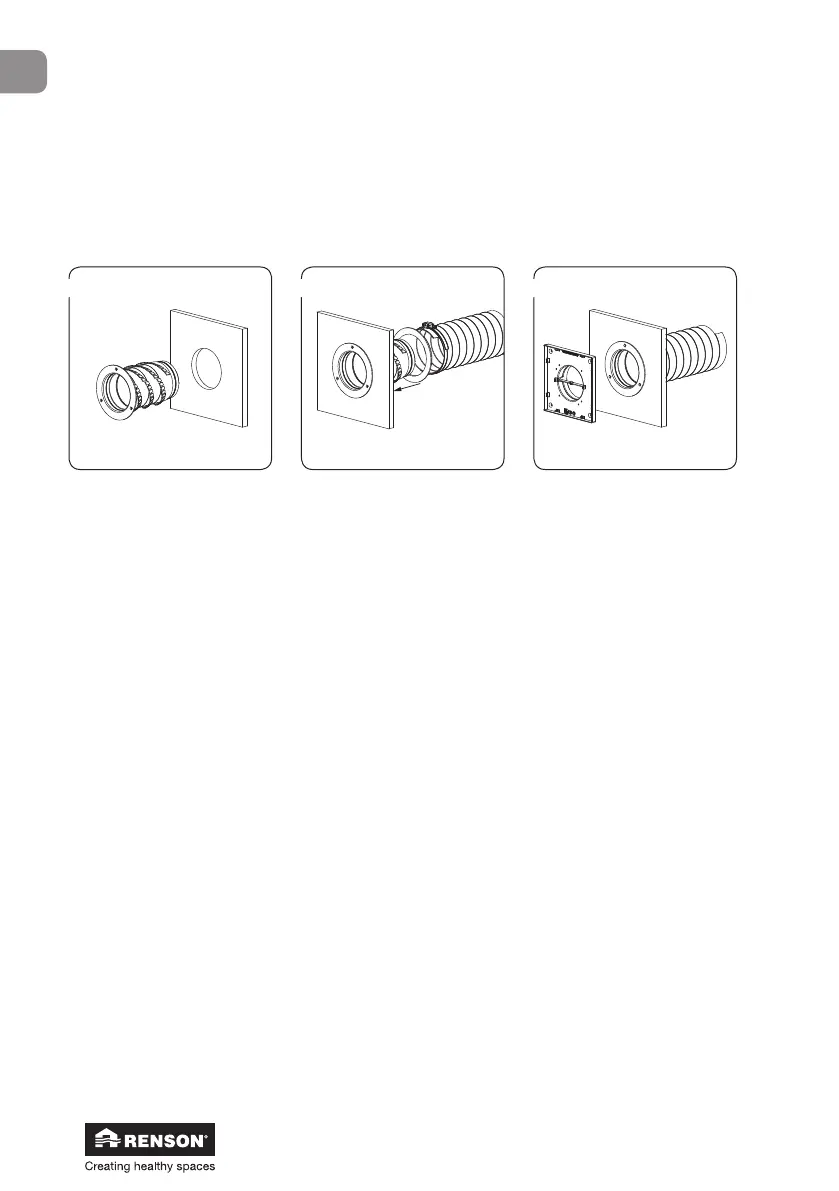

The design grille with integrated butterfly valve can be installed onto the wall (use the included
grille frame) or you can go for a flush integration in the wall (use the RENSON
®
plaster kit or
panel kit). We recommend using the serrated mounting flange for connecting the ventilation ducts
to the extraction grille.
You can find detailed installation examples (on the wall, flush installation, dry-wall, mdf, …) at
the RENSON
®
website: www.renson.eu.
Under the section ‘manuals’ you can find “installing the design extraction grille’.
➊ ➋ ➌
