Prusa i3 – Build Manual
Next slot the M8 smooth rods through the LM8UU bearings of the assembled X-Axis (Fig 5.2c), adjust the ends
of the X-Axis on the rods to line up with the smooth rods, then push the smooth rods down into the M8 holes
on the top of the Z-motor mounts.

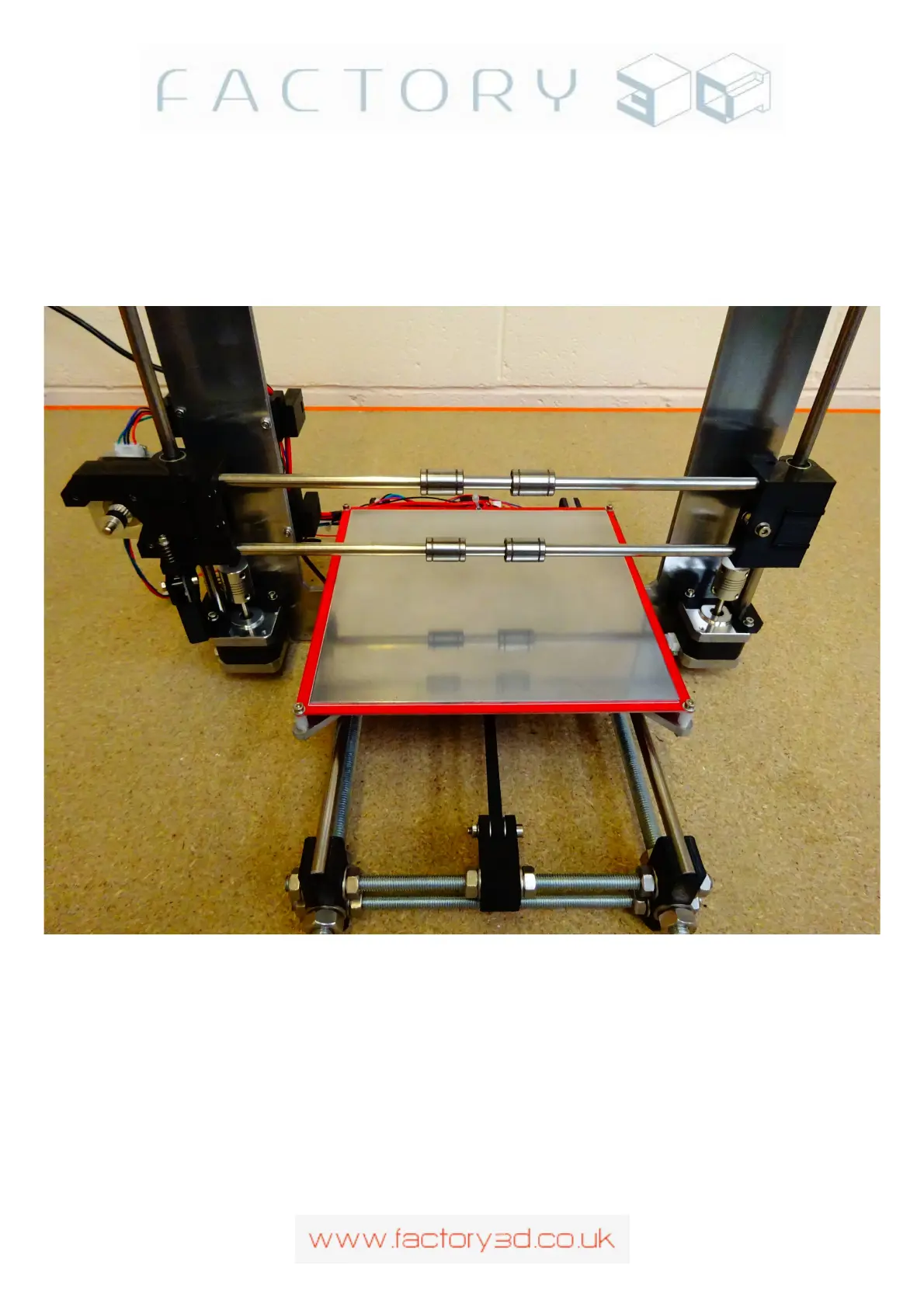

Fig 5.2c:
Version: 1.3 Page: 28
