RepRap Prusa i3 - LCD Wiring

Prusa i3 – Build Manual
10.2 LCD Wiring
Plug in the two ribbon cables to the back of the LCD and into the adapter with the ribbon cables running
straight down the the ramps (Fig 10.2b). The adapter plugs into the top header of the RAMPS.

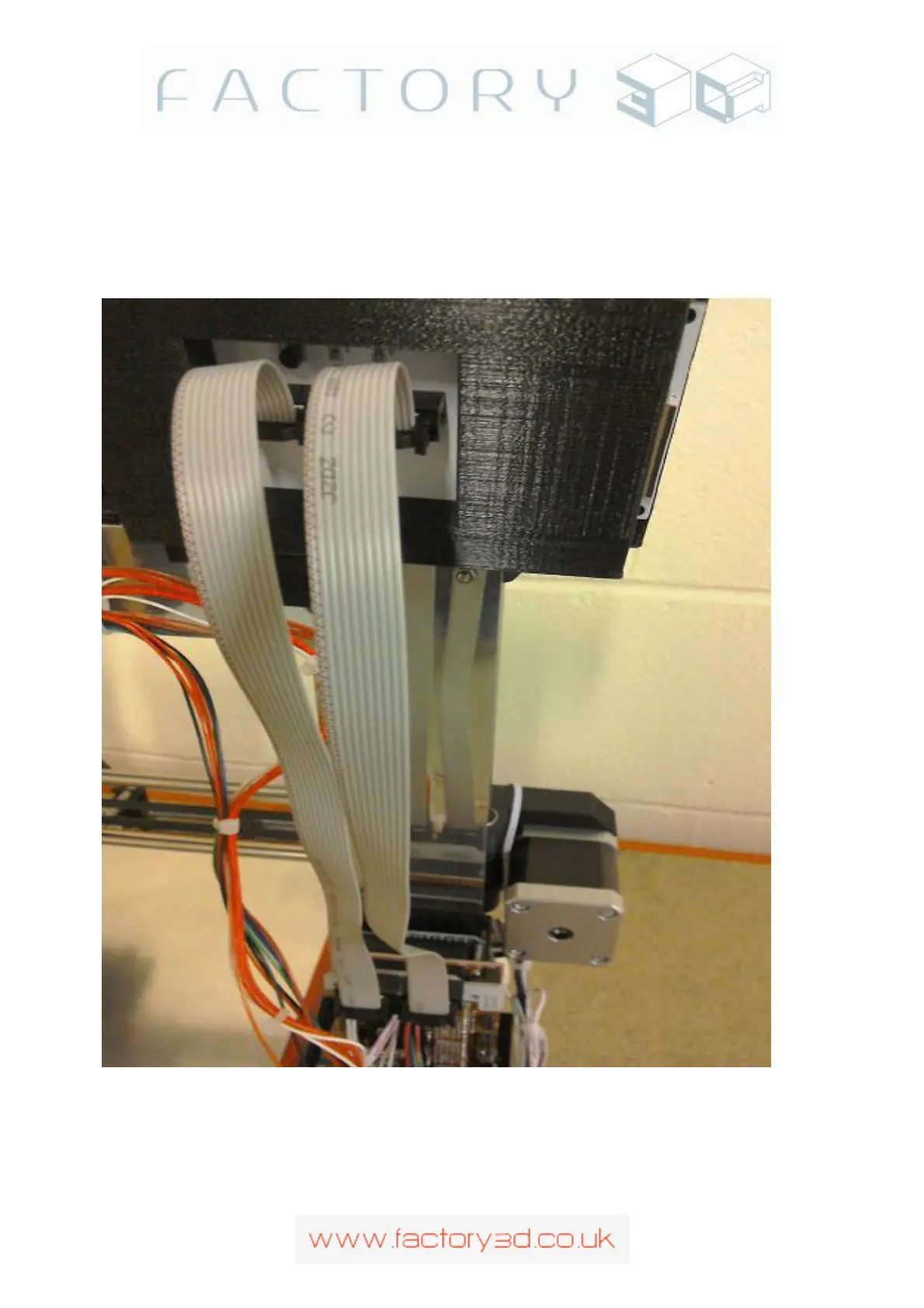

Fig 10.2a:
Version: 1.3 Page: 46
