RepRap Prusa i3 - LCD; LCD Case & Mount; LCD Case Assembly

Prusa i3 – Build Manual
10. LCD / LCD Case & Mount
10.1 LCD Case Assembly

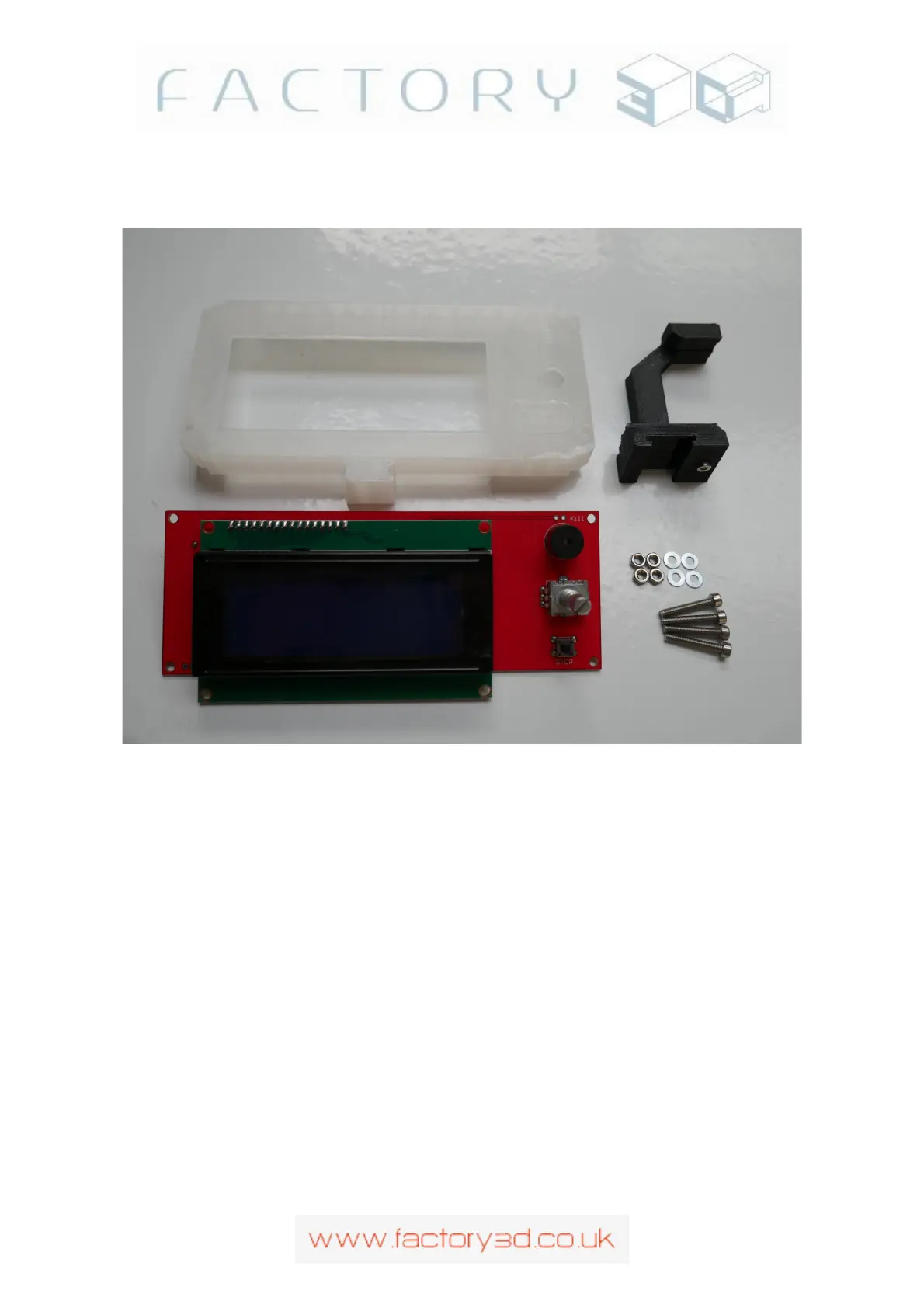

Firstly slot the LCD top first into the case section, then bolt on (using the 4x M3 bolts). Next clip the mount
onto the top left hand corner of the frame and tighten using the M3 bolt. The LCD case then just slots into the
top of the clip (see Fig 9.1a in the spool mount section)
Version: 1.3 Page: 45
