RepRap Prusa i3 - Final RAMPS Wiring

Prusa i3 – Build Manual
8. Final RAMPS Wiring
Now to complete the RAMPS wiring including the hot-end, heated bed, fans and power supply (if you have not

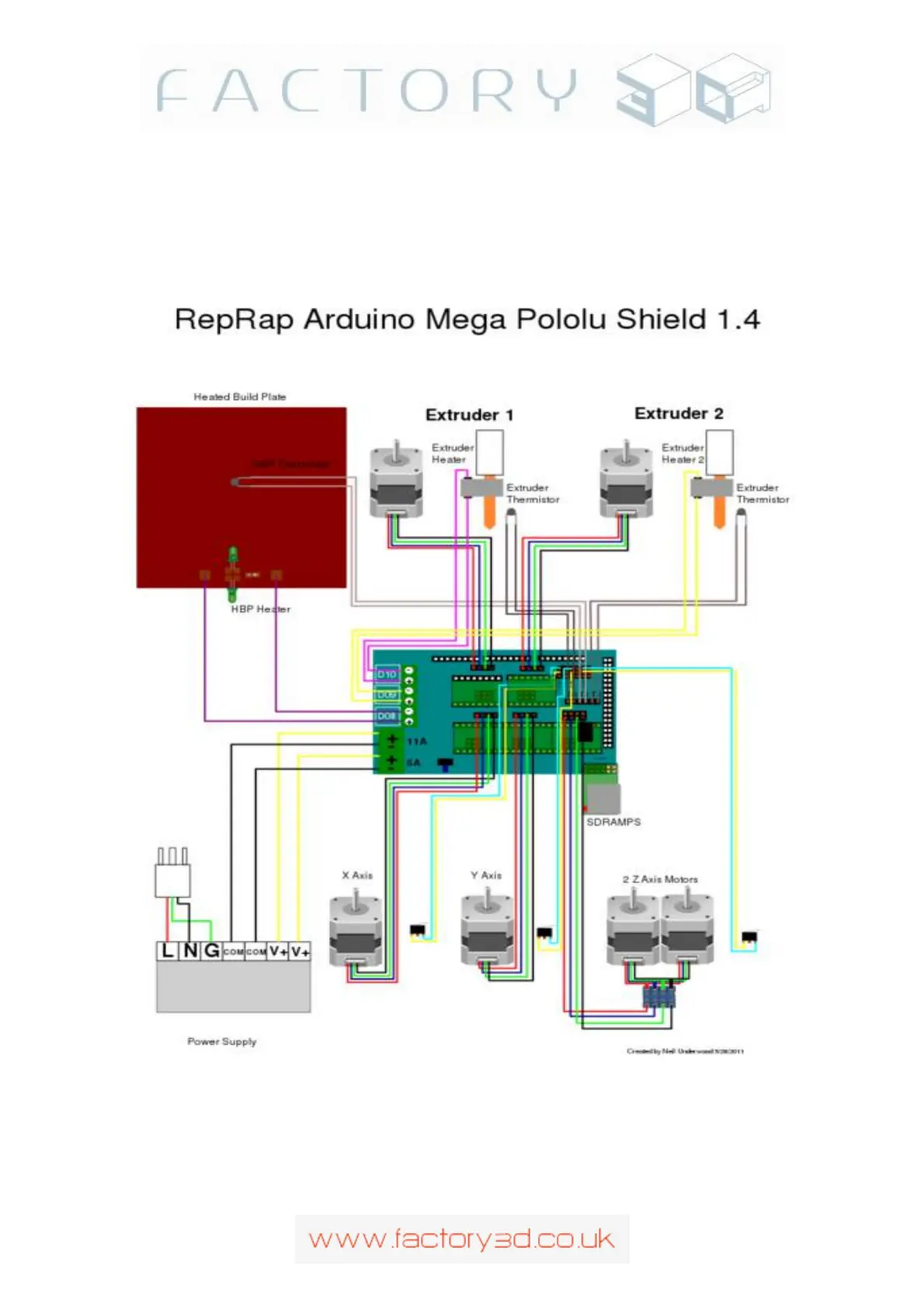

yet got a power supply ready to connect see Appendix C). For your reference here is a RAMPS 1.4 wiring
diagram taken from RAMPS wiki :
Version: 1.3 Page: 40
