Prusa i3 – Build Manual

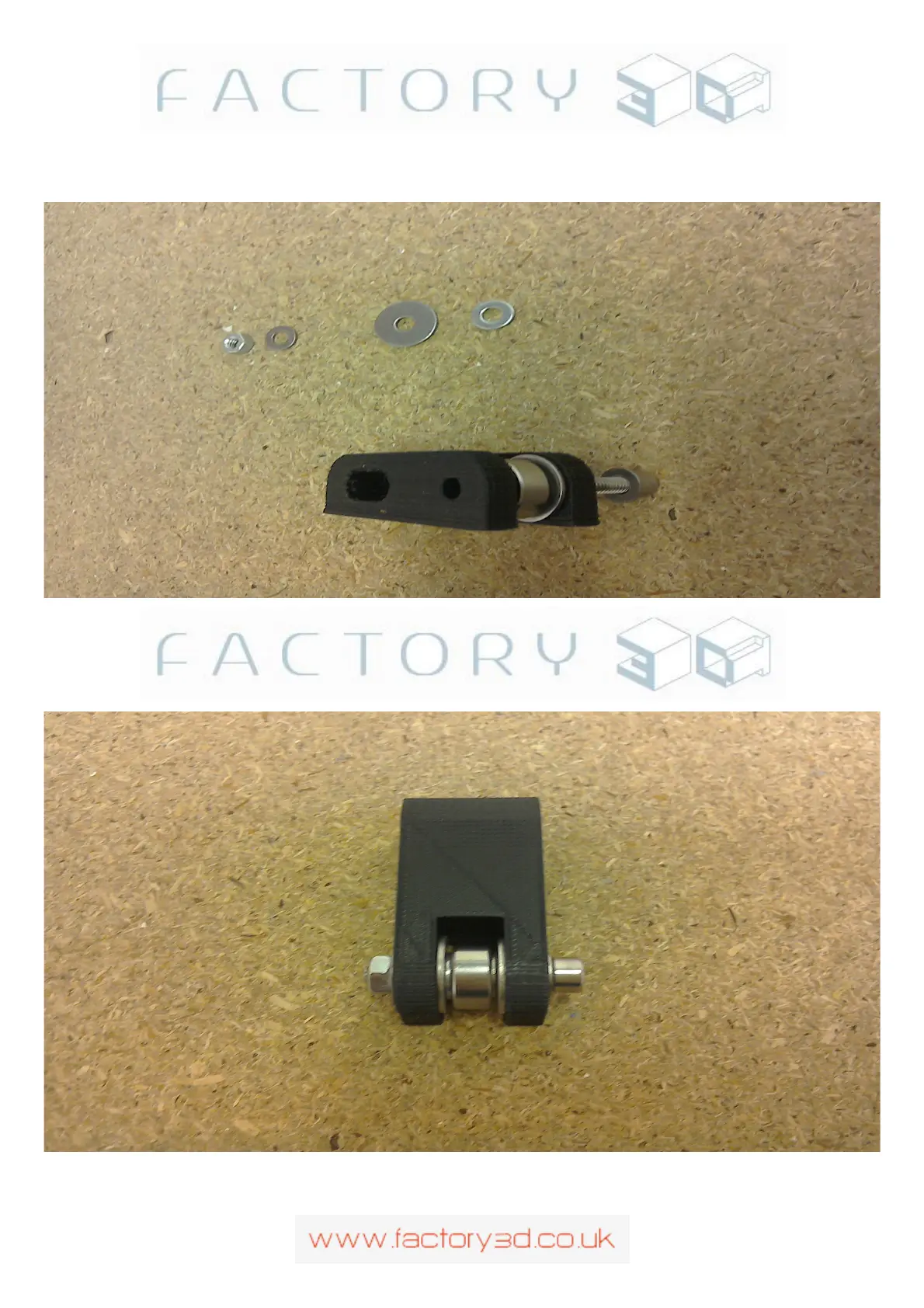

Next slot a 9mm M4 washer onto the bolt then the 624zz bearing (Fig B4).
Fig B4:
followed by another 9mm washer and the last washer on the inner of the idler another 14mm washer, finished
off with a 9mm washer and nut on the outside of the idler (Fig B5).
Fig B5:
