Prusa i3 – Build Manual

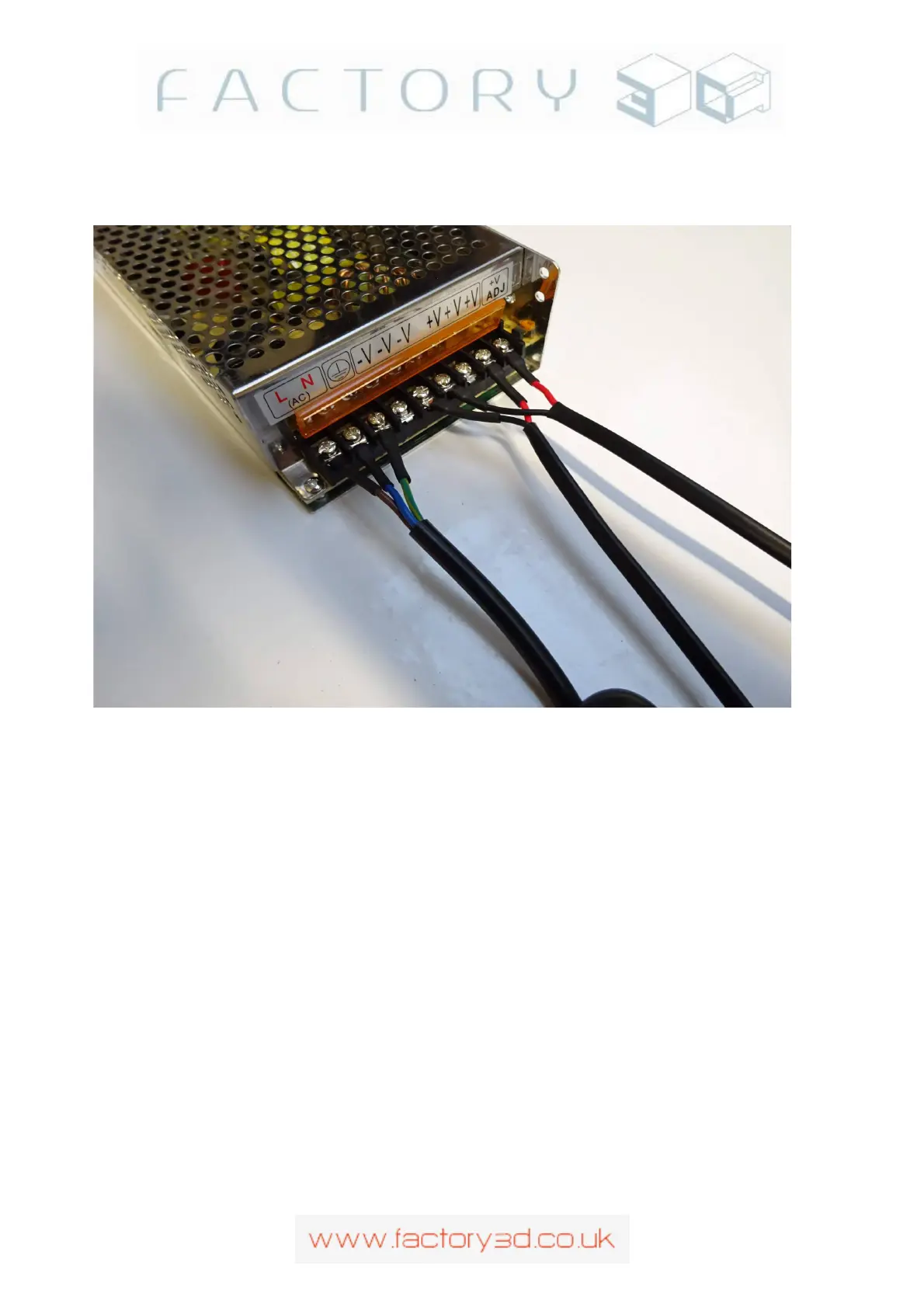

Fig C2 (LED strip wired photo)
One thing that can sometimes be confusing is the strip label above the screw terminals is often not aligned
exactly over 9 screw terminals (see photo), so bear this in mind and double check your wiring.
Now you can crimp spade terminals onto the end of the two sets of red/black RAMPS power wires (if they
arent supplied already crimped) to allow quick release of power supply from the printer (easier to move the
printer, maintenance etc).
Version: 1.3 Page: 67
