Prusa i3 – Build Manual
Next mount the motor assembly onto the two M8 threaded rods with the GT2 timing pulley teeth in the centre
and the motor wires feeding out through the back of the two rods (Fig 1.2b). Just hand tighten the M8 nuts at
this stage.

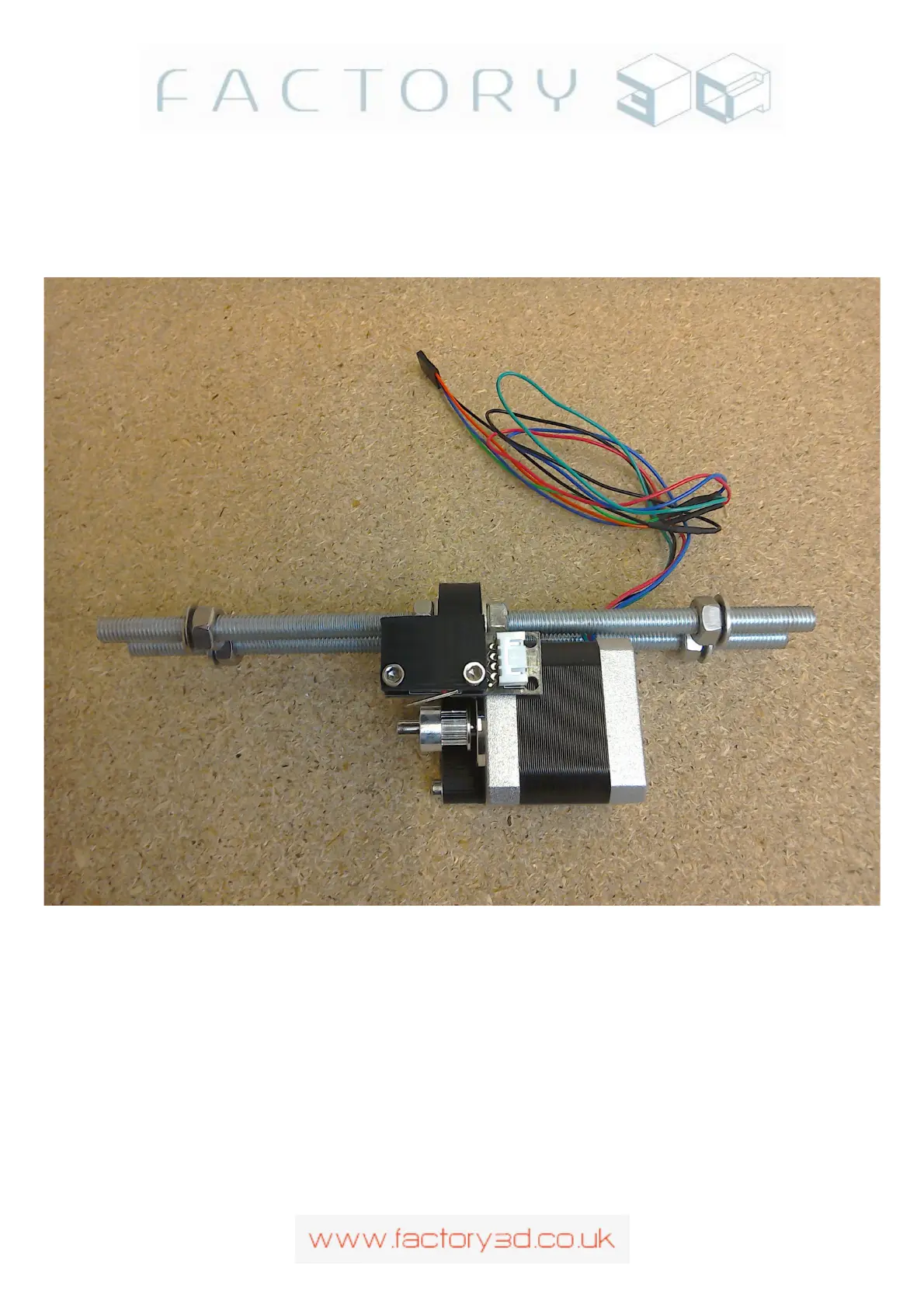

Fig 1.2b:
Version: 1.3 Page: 7
