Wireless module
Technology used: 2G GSM
It is recommended that the device is a minimum distance of 2 cm from the body during operation. Not applicable to masks,
tubes or accessories
Operating pressure range
S, VAuto: 2 to 25 cm H
2
O (2 to 25 hPa)
CPAP: 4 to 20 cm H
2
O (4 to 20 hPa)
Supplemental oxygen
Maximum flow: 15 L/min (CPAP, S); 4 L/min (VAuto)

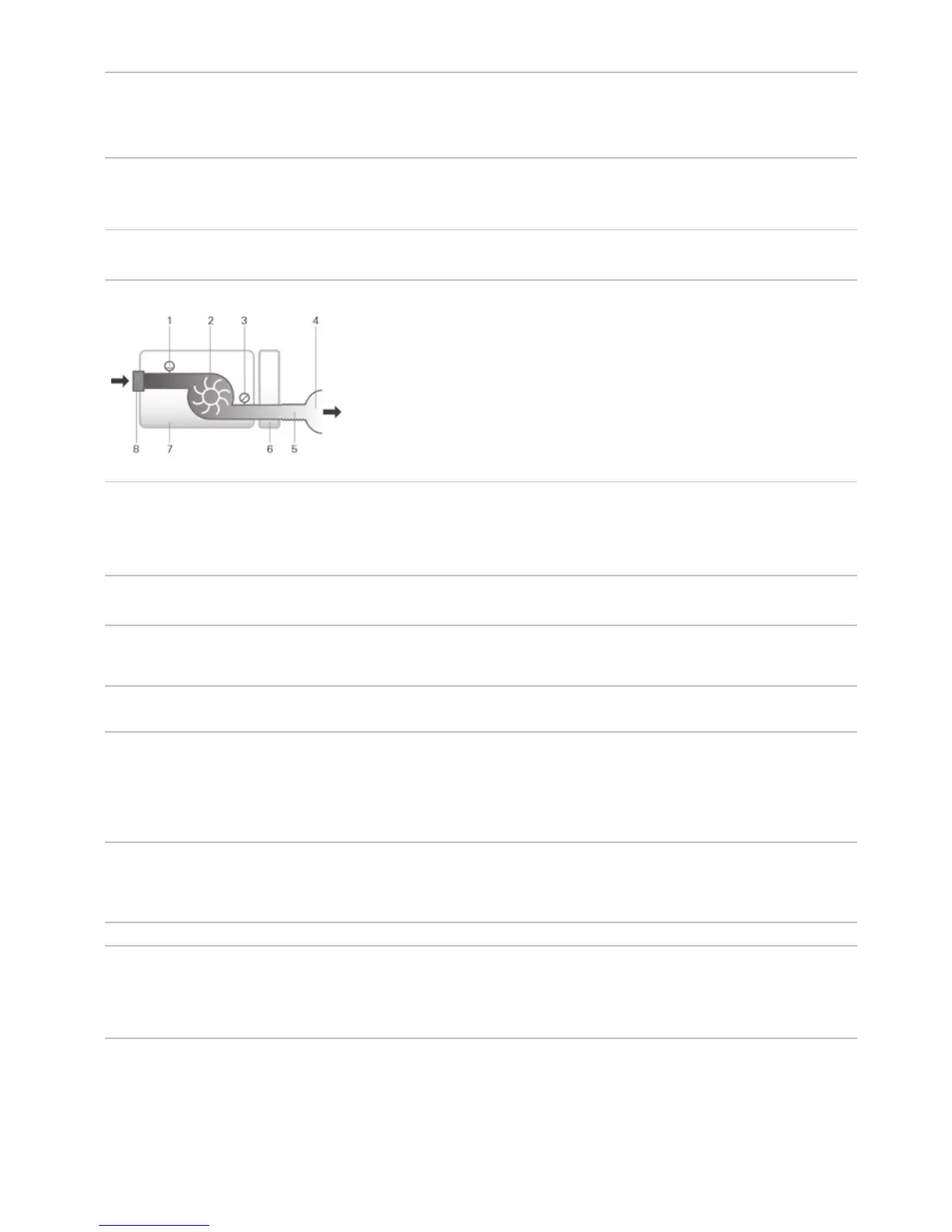

Pneumatic flow path
1. Flow sensor
2. Blower
3. Pressure sensor
4. Mask
5. Air tubing
6. Humidifier
7. Device
8. Inlet filter
Design life
Device, power supply unit: 5 years
Cleanable humidifier: 2.5 years
Air tubing: 6 months
General
The patient is an intended operator.
Humidifier performance
The following settings have been tested at 22°C ambient temperature:
Mask Pressure
cm H
2
O (hPa)
RH output % Nominal system output AH
1
, BTPS
2
Setting 4 Setting 8 Setting 4 Setting 8
3 85 100 6 >10
4 85 100 6 >10
10 85 100 6 >10
20 85 90 6 >10
25 85 90 6 >10
1
AH - Absolute Humidity in mg/L
2
BTPS - Body Temperature Pressure Saturated
Air tubing
Air tubing Material Length Inner diameter
ClimateLineAir Flexible plastic and electrical components 2 m 15 mm
SlimLine Flexible plastic 1.8 m 15 mm
Standard Flexible plastic 2 m 19 mm
Heated air tubing temperature cut-out:
41°C
Notes:
The manufacturer reserves the right to change these specifications without notice.
The electrical connector end of the heated air tubing is only compatible with the air outlet at the device end and should
not be fitted to the mask.
Do not use electrically conductive or antistatic air tubing.
The temperature and relative humidity settings displayed are not measured values.
