ReSound ONE 9 - ReSound Coyote 6 CIC Internal Wiring Diagram

Doc 0452940 rev. A
Page 11 of 14
Not subject to issue control when printed

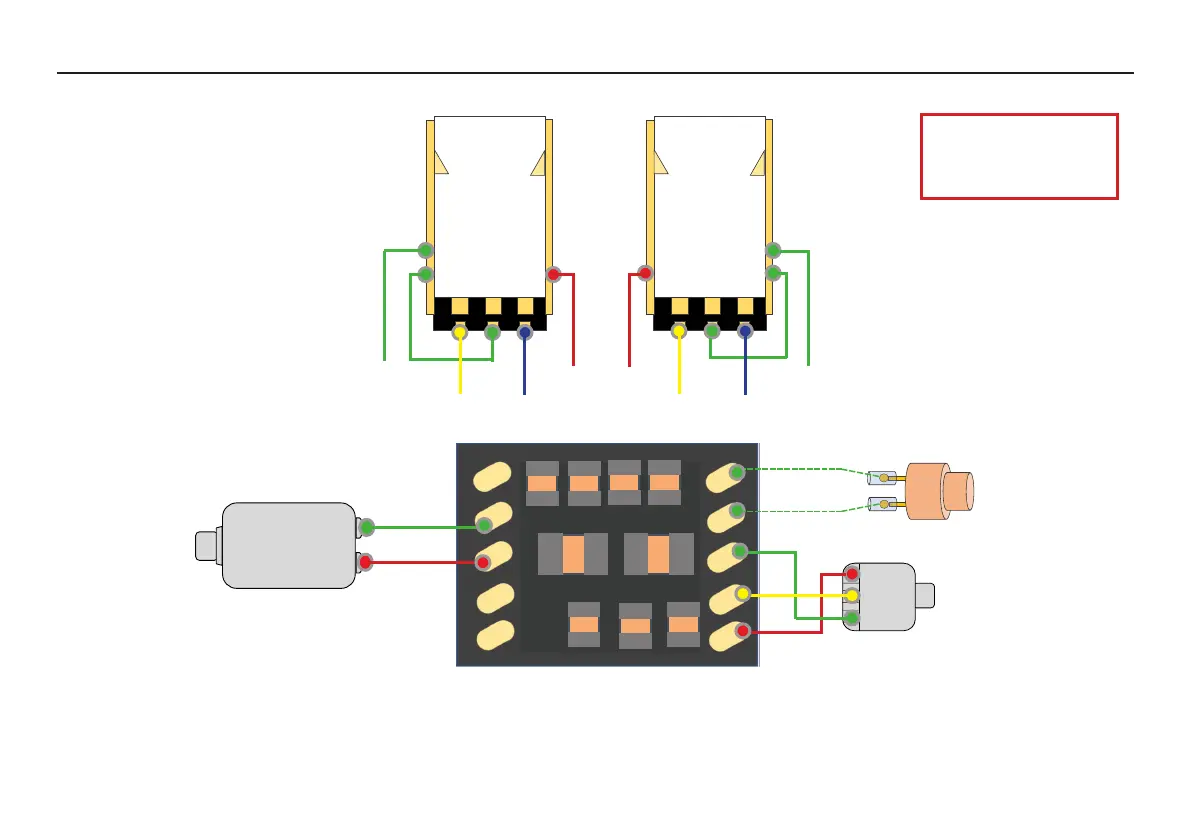

NEW Wiring Diagram for C6 CIC
NOTE:
Peters coat must be added after soldering
H 17
H 17
H 20
H 20
H 16
H 16
H 19
H 19
Right
Faceplate
Left
Faceplate
(+)
(+)
(-)
(-)
(Batt. compartment)
(Batt. compartment)
C6CICEHYB
Please Note:
The hybrid C6 does not
support Volume Control.
H 2
H 1
H 3
H 17
H 16
H 14
H 13
H 19
H 20
H 24
Microphone
(+)
(-)
Receiver
Push Button
(Optional)
