Retrax EQ - Connection Diagram; Key Features; OEM FOB Operation; User App Control

4 5

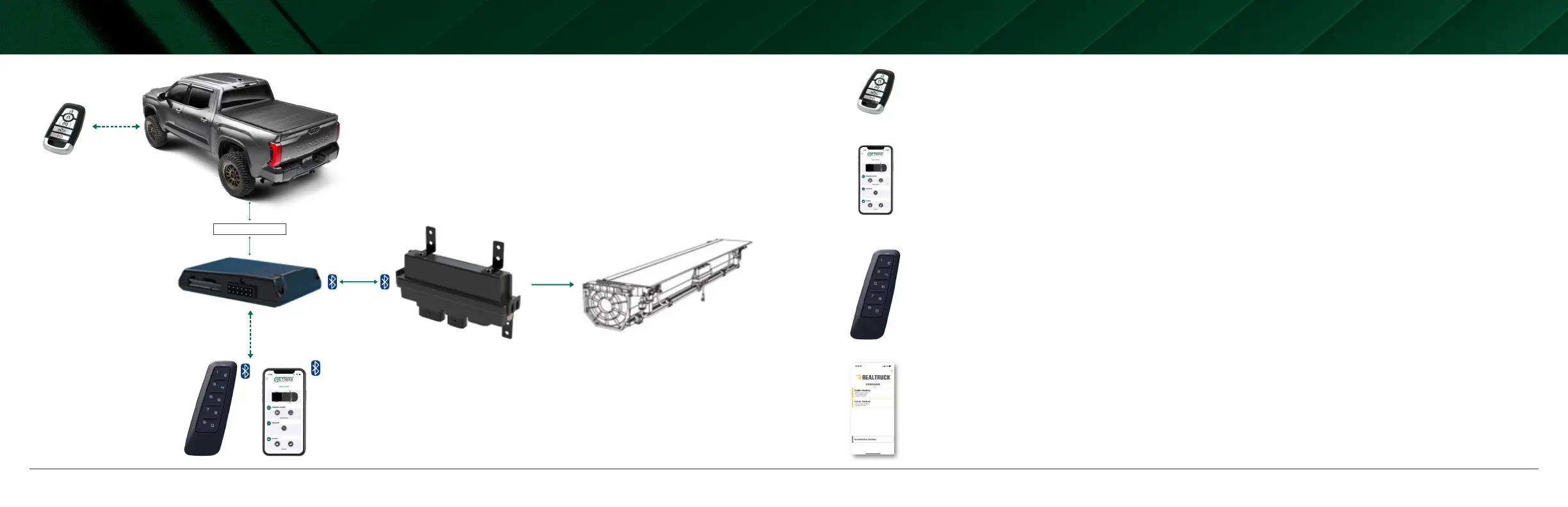

CONNECTION DIAGRAM
T-harness
RF Link
Wired
Wired
Wired
Wireless
Wireless
KEY FEATURES
OEM FOB full integration with the system. User able to operate the cover using the FOB
• 3x lock = cover close
• 3x unlock = cover open
• 3x lock or unlock = stop cover
User APP to control the cover over Bluetooth
• Function lock, unlock, tailgate (if supported)
• Cover open/close
Keypad to control the cover over Bluetooth
• Function lock, unlock, tailgate (if supported)
• Cover open/close
Installer APP
• For an “out of the box” scenario, the pairing between the cover module and cabin module is fully automated.
• Flash Truck FW using the APP wirelessly (Bluetooth).
• Over the Air FW update of the Cover and Cabin module.
• Link to installation guides.
