REVCON RHF-Active - RS-485 and CAN Communication

5. Installation instructions
User manual RHF-Active 30

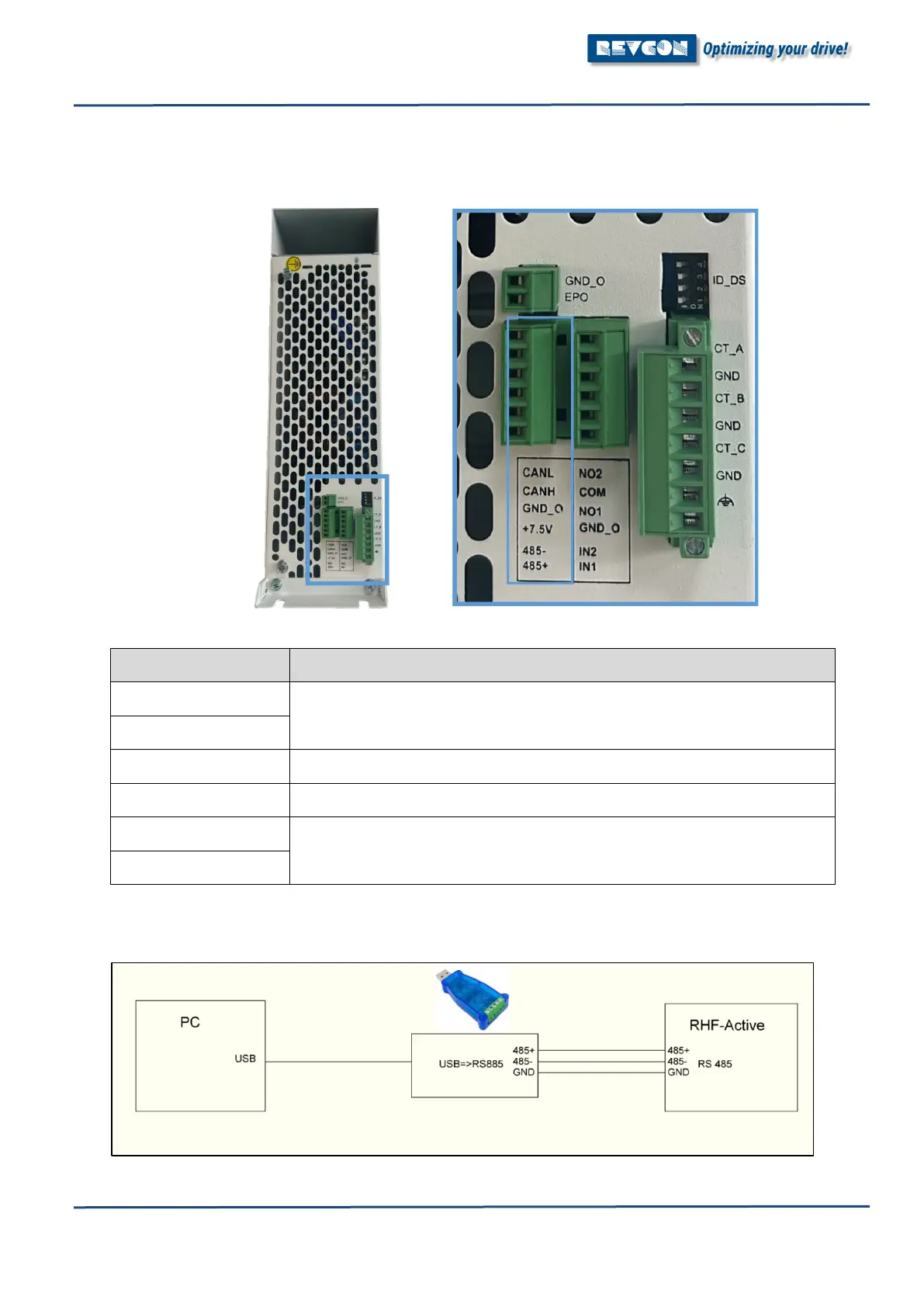

5.3.4 RS-485 and CAN Communication
Terminal label Function
CANL
CAN connection for software update (for use of REVCON only)
CANH
GND_O GND
+7.5V Aux supply. For use of REVCON only.
485+
485 Interface for remote control by a computer. A standard-485-
communikation interface requires screened or twisted wires. If the
wire length exceeds 1m, GND must be connected.
485-
Wiring example:
