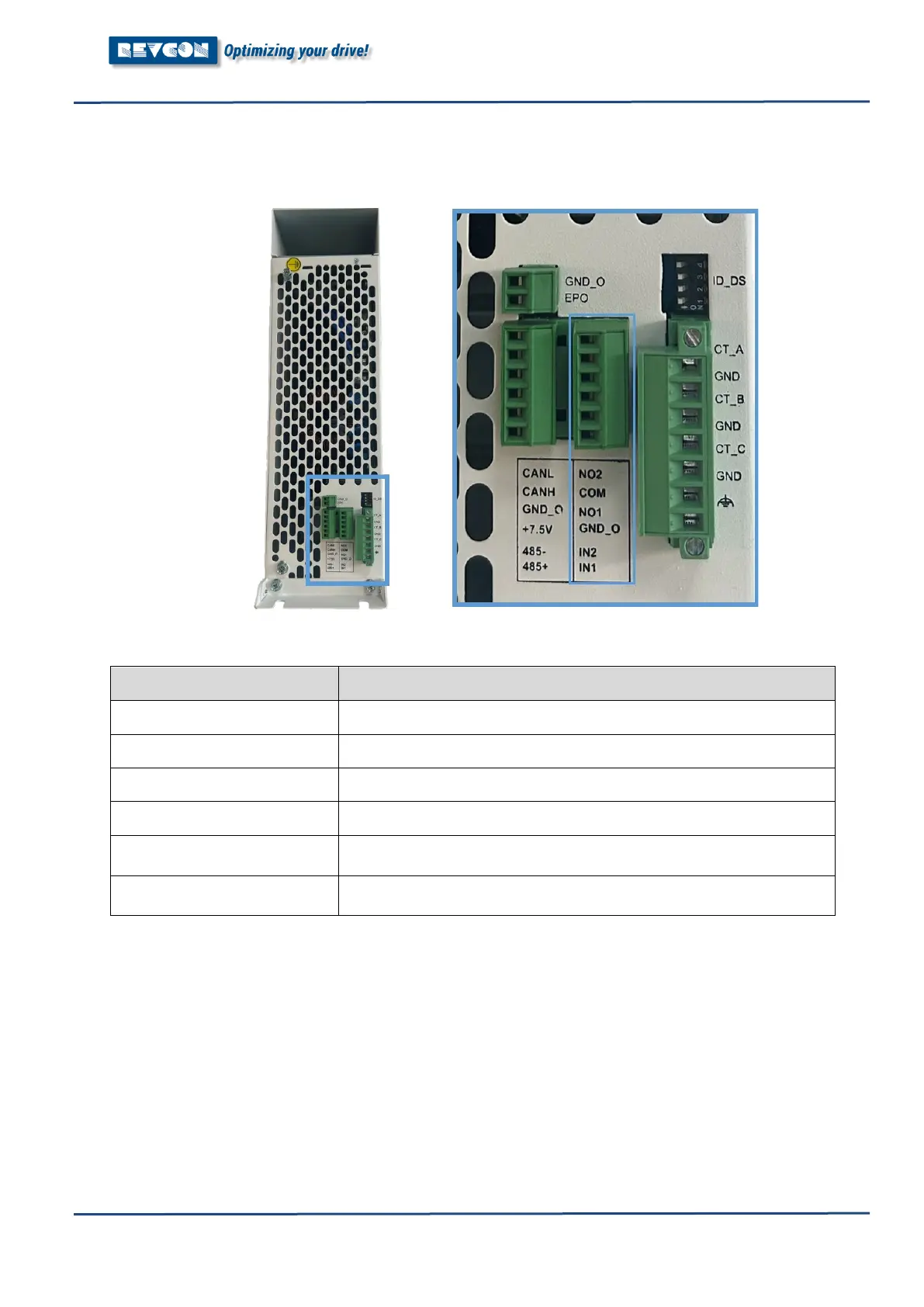

5.3.10 Input and output interface
Terminal label Function
NO2 Relay 2, Normal Open, DC, capacity: 8A/250VAC
COM Common ground for relay output
NO1 Relay 1, Normal Open, DC, capacity: 8A/250VAC
GND_O Common ground for DC input
1N1
IN1+ for DC +,
recommended input voltage range: 10 ~ 24V DC
1N2
IN2+ for DC +,
recommended input voltage range: 10 ~ 24V DC
