4. The SIM card holder is located on the little LTE daughter board close to the 2G/4G SMA
antenna connector.

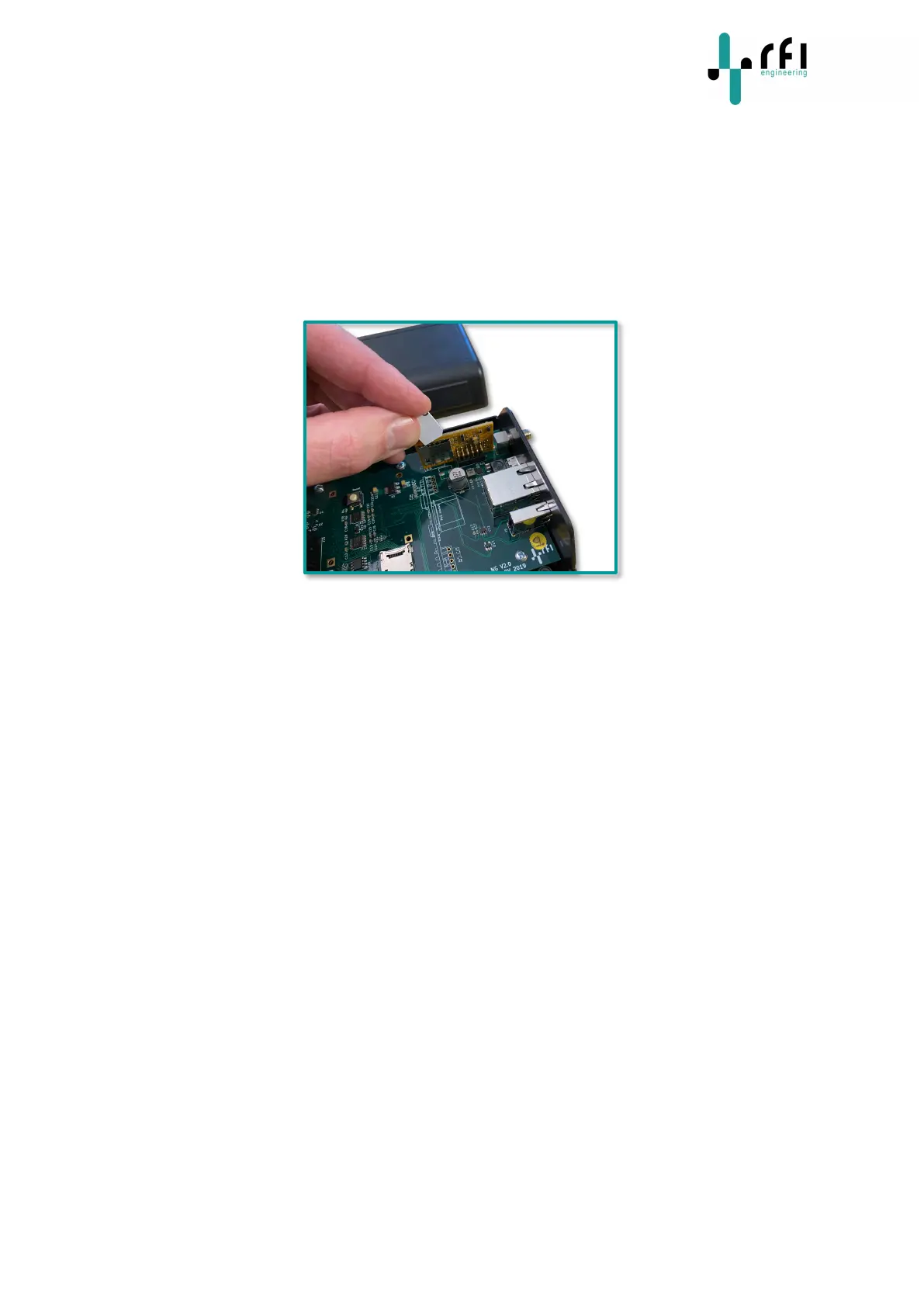

5. Insert the SIM card with the connections facing towards the daughterboard into the SIM
card holder. Pay attention to the correct position. The SIM card has a small cut off corner
which is located on the bottom right corner in the picture below.
The SIM card should ‘click’ into place.
6. Re-assemble the unit, taking the above steps in reverse order.
5.2 Connecting Power using the Power Adapter
Connect the supplied power adapter to the power port of the U-router NGW. The power port is
labeled: “PWR”. The plug the power adapter into a power outlet.
5.3 Connecting Power using the PoE Power Supply
Connect the PoE cable of a PoE switch, or the supplied PoE adapter, to the “ETH” port of the U-
router NGW.
