4 Connectors and status LEDs on the U-router NGW
This section provides an overview of the connectors and status LEDs on the U-router NGW unit.
4.1 U-router NGW front panel

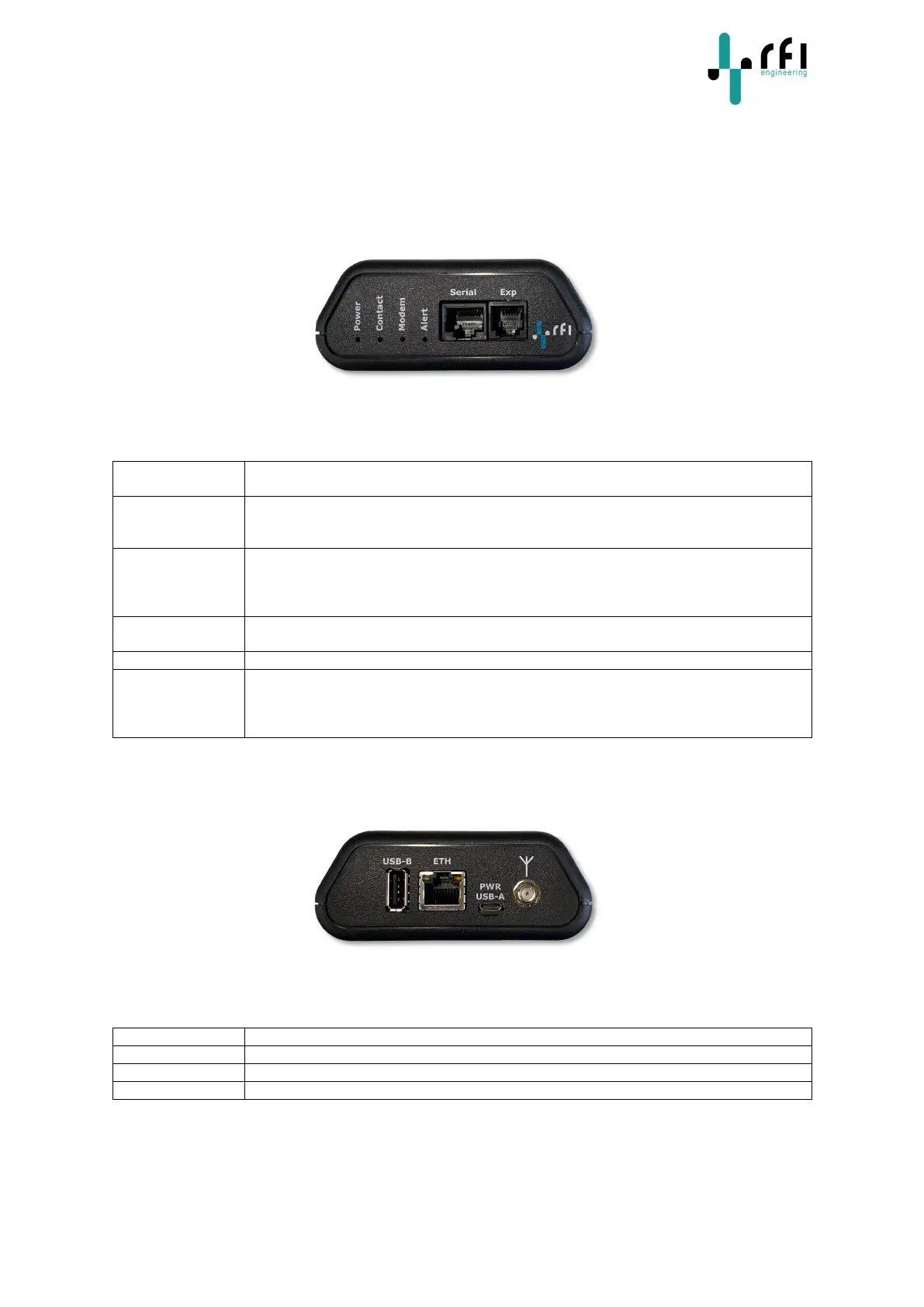

Figure 1: U-router NGW front view
1 – Power
Blue, Power LED.
- LED on = power on
2 – Contact
Green, Contact/Relay status.
- LED off = contact open
- LED on = contact closed
3 – Modem
Green
- LED flashing 500ms on/off = searching for network,
- LED flashing on, on, off = found network waiting for data connection,
- LED on, flashing off, off = data connection operational
4 – Alert
Green
- LED flashing when an error has occurred
5 – Serial
RJ45 serial port, Cisco console port compatible
6 – Exp
Expansion port
- Contact normally open
- RS485 RIOT/Modbus
4.2 U-router NGW rear panel
Figure 2: U-router NGW rear view
1 – USB-B
USB expansion port
2 – ETH
RJ45 Ethernet connector
3 – PWR USB-A
5.1V power connector 2.5A
4
SMA antenna connector (2G/4G)
