RFI U-router NGW User Manual

The information contained in this document is subject to change. This document contains proprietary information, which is protected by copyright
laws. All rights are reserved. No part of this document may be photocopied, reproduced or translated to another language or program language
without prior written consent of RFI Engineering B.V.
RefGuide_U-routerNGW_v1.01.docx Page: 7(57)

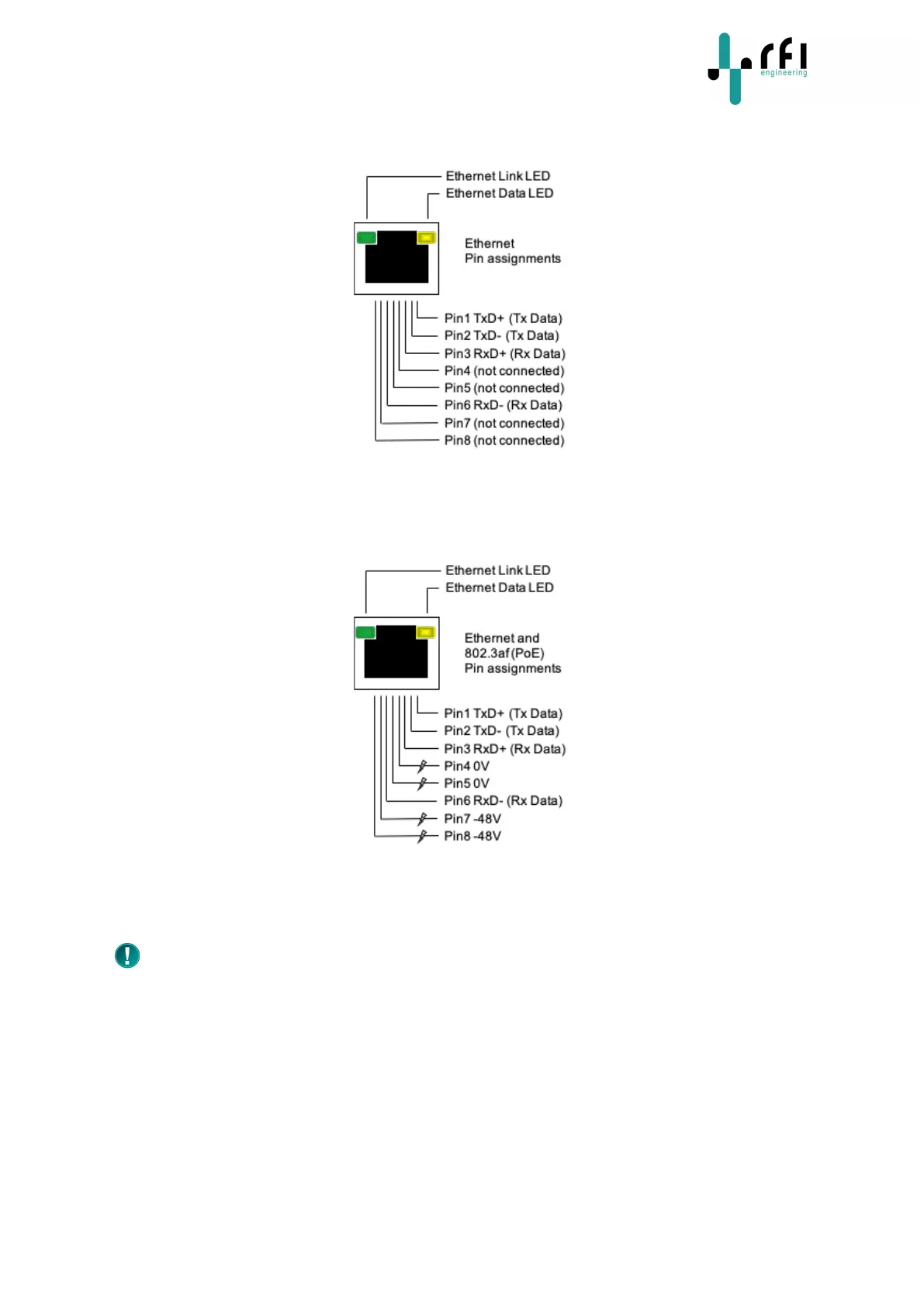

4.3 Ethernet Pin Assignments
Figure 3: Ethernet pin assignment for NON-PoE variant
Figure 4: Ethernet pin assignment for PoE variant
Please note: the PoE variant (RE.45.HCPG and RE.45.HCPV) of the U-router NGW must NOT
be powered by the 5.1V micro USB power supply AND the 48V PoE power supply simultaneously.
The PoE variants of the U-router NGW contain a 48DC to 5V convertor/power supply that is internally
connected to the 5V micro USB port of the router. Connecting both power supplies might result in
damage to the power supply circuits of the U-router NGW with PoE.

RFI U-router NGW Specifications

General

Brand	RFI
Model	U-router NGW
Category	Network Router
Language	English
