S V C 8 2 0 ( P ) P o c k e t M a n u a l P a g e 103
103
2

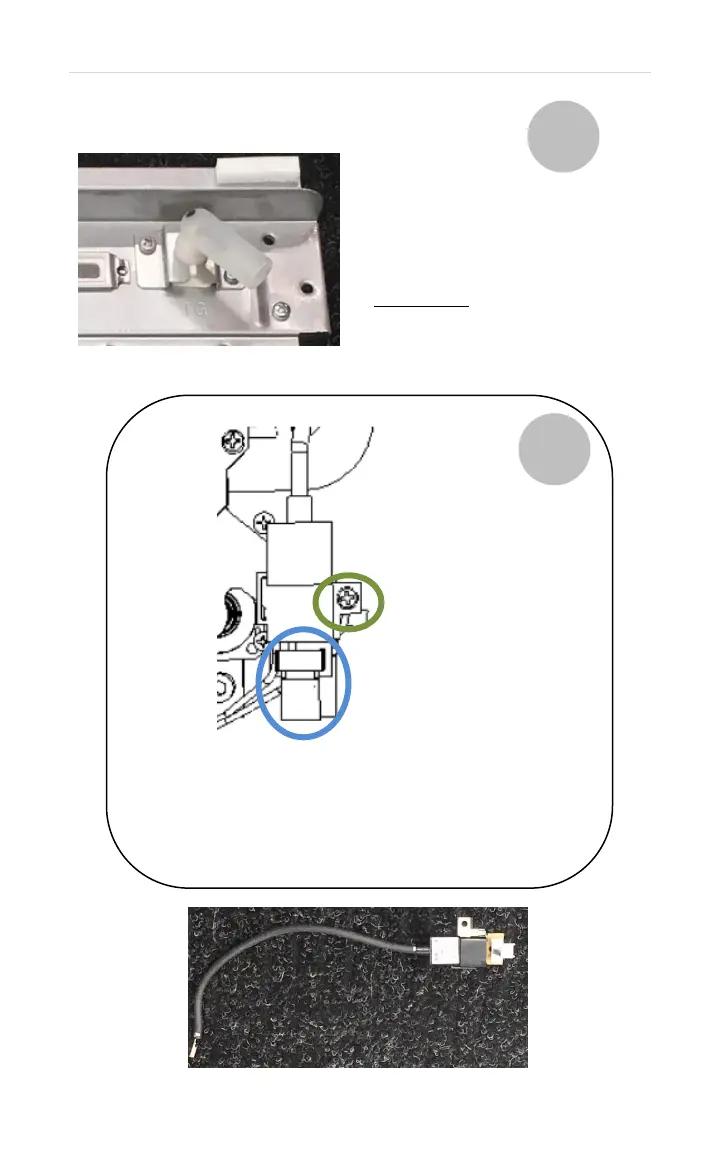

 Disconnect black igniter cable
from igniter rod.
 Remove igniter rod mounting
screws.
 Pull igniter out.
IMPORTANT:
During reassembly - make sure
igniter rod gasket is in place.
Igniter Rod
*Disconnect black igniter cable from igniter rod.
*Remove igniter coil mounting screw.
*Disconnect white Molex from igniter coil
(circled in blue – has 2 grey wires).
3
Igniter Coil
