Rheem 64DV - Section 12: Control Board

122 | P a g e S V C 8 2 0 ( P ) P o c k e t M a n u a l
122

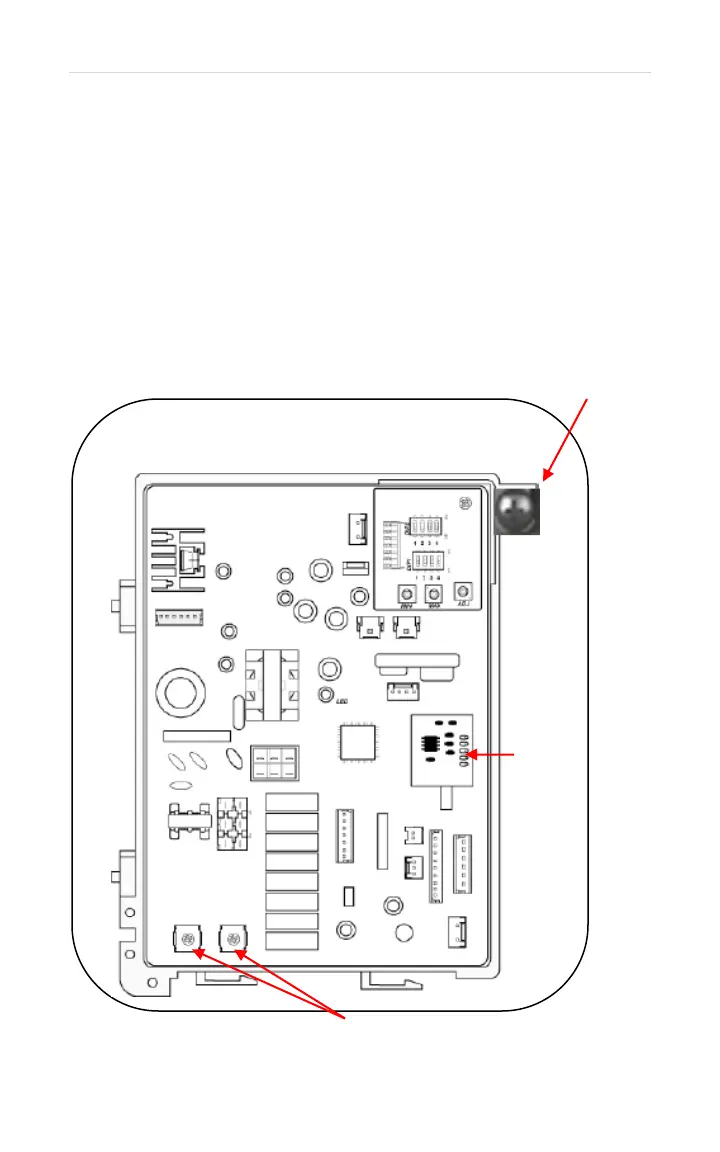

***FUEL TYPE CHIP*** – When replacing Control Board,
you must use the original chip on the new Control Board
Line Voltage Screws
(120 Volt AC ONLY. DO NOT
connect any other device)
Mounting Screw
*Remove ALL Molex connections on control board.
*Remove line voltage screws (black & white wires).
*Remove top right mounting screw.
*Remove Fuel Type Chip.
Section 12: Control Board
ALWAYS TURN OFF Power, Water & Gas
Fuel Type
Chip
