Rheem 64DV - Section 4: Orifice Assembly

104 | P a g e S V C 8 2 0 ( P ) P o c k e t M a n u a l
104
Section 4: Manifold Assembly
ALWAYS TURN OFF Power, Water & Gas
*Move control board bracket out of way (follow instructions in
Section 1).

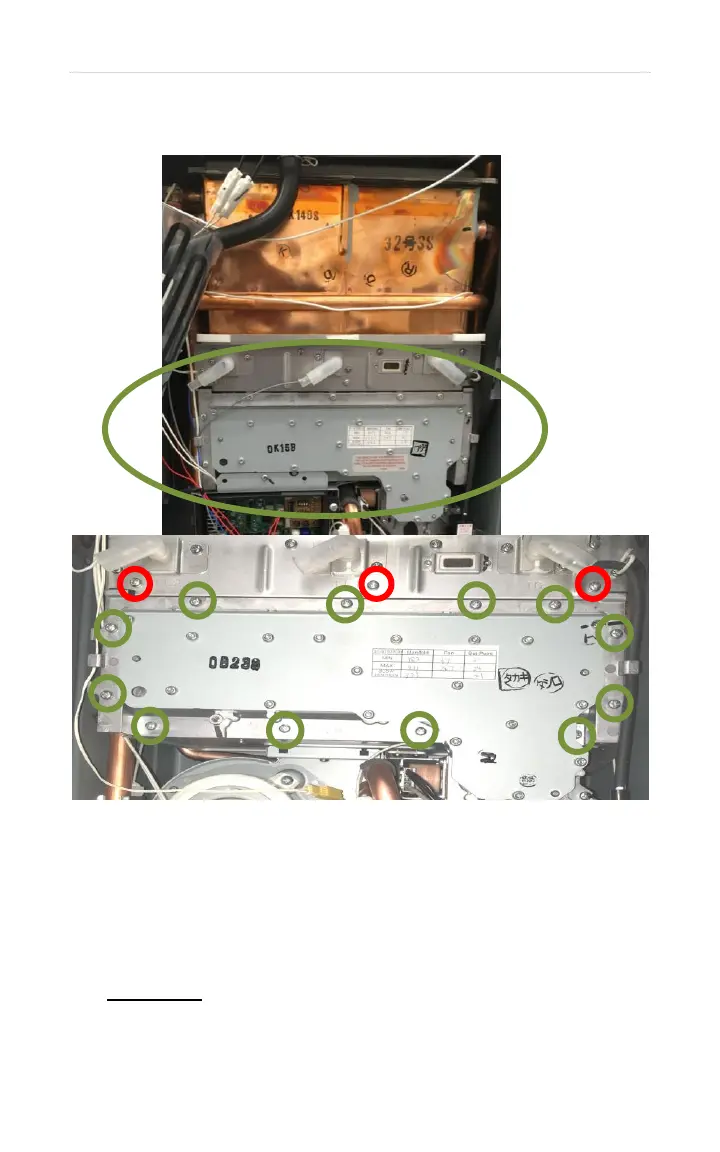

*Remove 12 screws from upper manifold assembly (circled in
green).
IMPORTANT: NEVER REMOVE 3 screws directly above
manifold assembly (CIRCLED IN RED).
