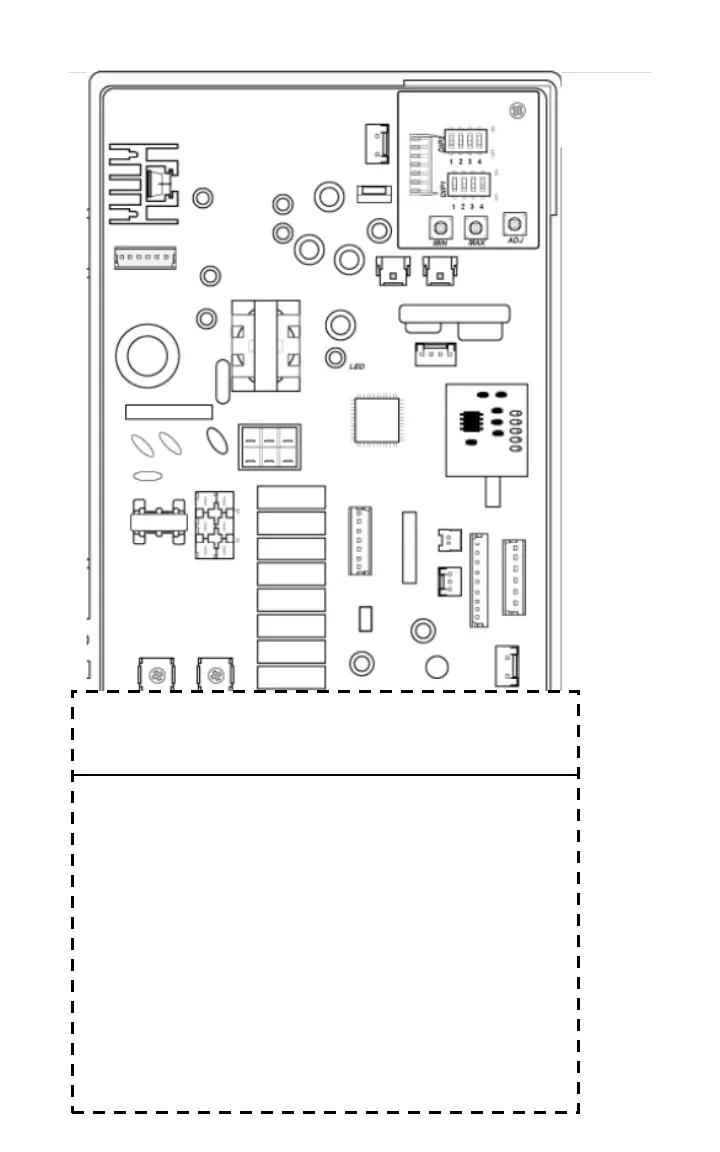

***FUEL TYPE CHIP*** – When replacing Control Board, you
must use the original chip on the new Control Board. New
Control Board must be programmed (refer to page 122).
P – Red, Red (High Efficiency ONLY)
M – White Molex: Grey
T – Blue Molex: Blue (Indoor Models ONLY)
K – Red, Black, Green, Yellow, White, Grey, Blue
H – White, White, Grey, Grey
U – White, White
S – Brown, Black, Red
C – Brown, White, Orange, Blue, Yellow, Green, Red, Black
B - Brown, White, Orange, Blue, Yellow, Green, Red, Black
G – Indoor Units: Blue, Yellow, White, Black, Red
G – Outdoor Units: Yellow, Orange, Red, Blue, White
R – Mid Efficiency: Red, Black, Black, Red, Yellow, White, Blue
R – High Efficiency: Red, Black, Black, Red, Green, White, Blue
