Rheem 64DV - Section 3: Flame Rod; Igniter Rod; Igniter Coil

102 | P a g e S V C 8 2 0 ( P ) P o c k e t M a n u a l
102
Section 3: Igniter Rod-Flame Rod-Igniter Coil
ALWAYS TURN OFF Power, Water & Gas

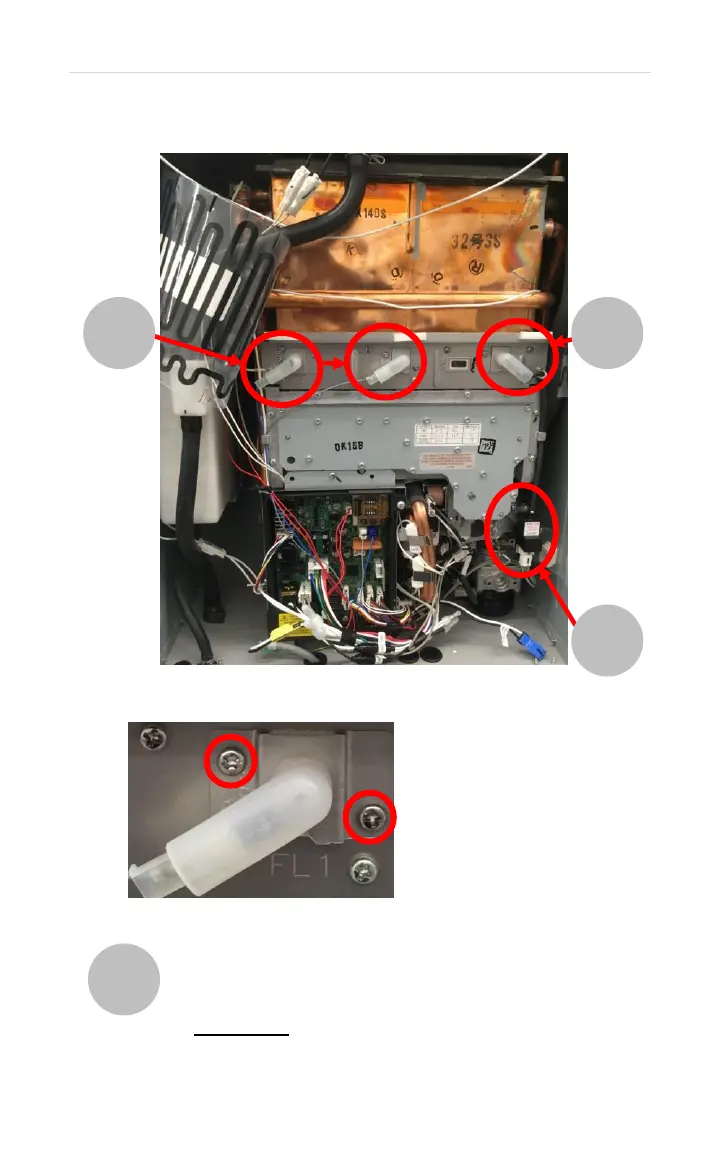

*Disconnect flame rod wire(s).
*Remove flame rod mounting screws.
*Pull flame rod(s) out.
IMPORTANT: During reassembly - make sure flame rod gasket
is in place. Outdoor (1) Flame Rod, Indoor (2) Flame Rods
1
Flame Rod(s)
1
2
3
• Flame Rod (FL) #1:
Detects presence of
flame (Error Code 12)
• Flame Rod (FL) #2:
Monitors proper
combustion
(Error Code 13)
