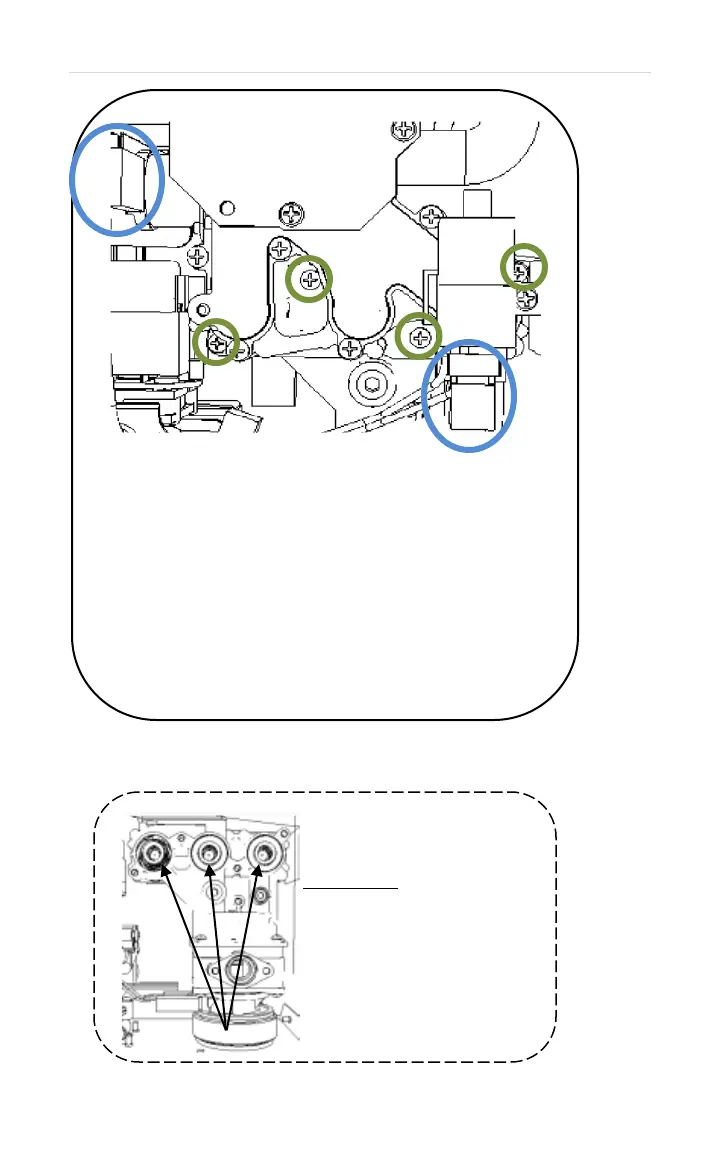

*Remove 4 screws from lower manifold assembly (circled in
green).
*Disconnect black igniter coil cable from igniter rod.
*Disconnect white Molex from bottom of igniter coil
(circled in blue – has 2 grey wires).
*Disconnect white Molex from solenoid on left
(circled in blue – has 2 black wires and 1 grey wire).
*Pull orifice assembly out.
NOTICE: All 4 screws are located at bottom of aluminum
casing. It is not necessary to remove upper screws.
