S V C 8 2 0 ( P ) P o c k e t M a n u a l P a g e 113
113

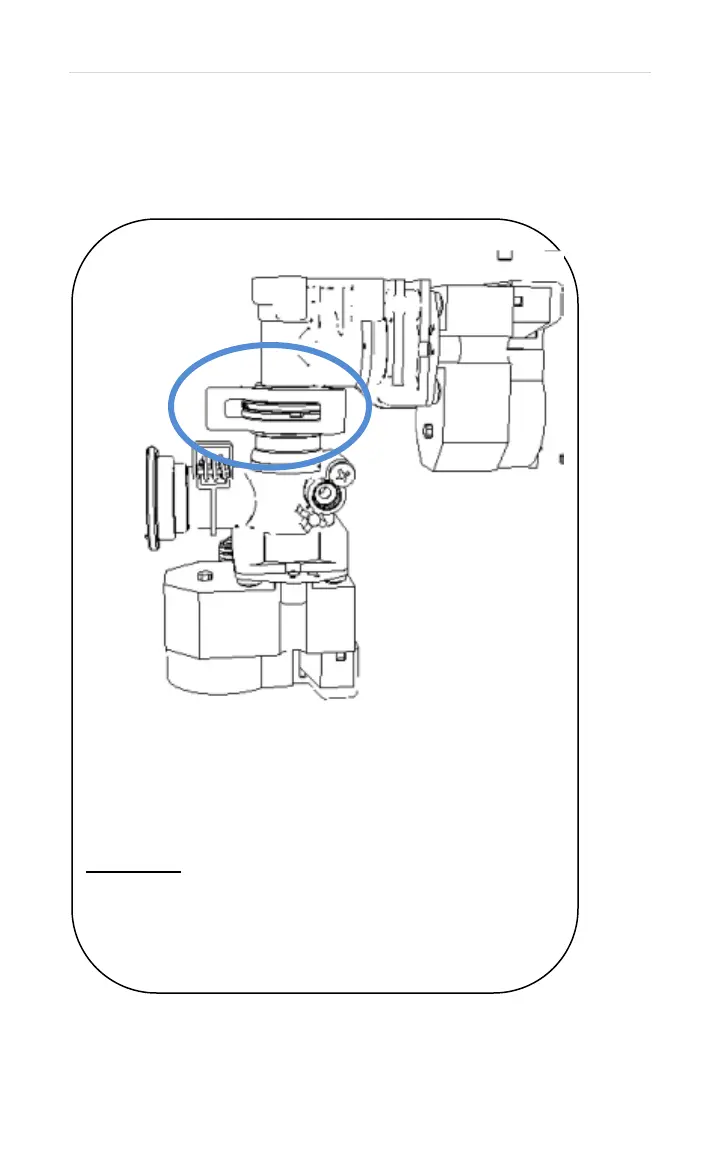

*Remove snap ring holding water bypass and water volume control
valves together (circled in blue).
*Twist water bypass and water volume control valve to separate
(1 o-ring).
IMPORTANT: During reassembly – make sure ALL O-Rings are on
MALE fittings. This will prevent pinching or rolling the O-Rings.
Side View of water control valve
Water bypass valve
Water volume control valve
