Section 12: Control Board
Replacement Procedure
Adjusting Manifold Pressure on NEW
Control Board
NOTE: This adjustment to be performed on NEW control board.

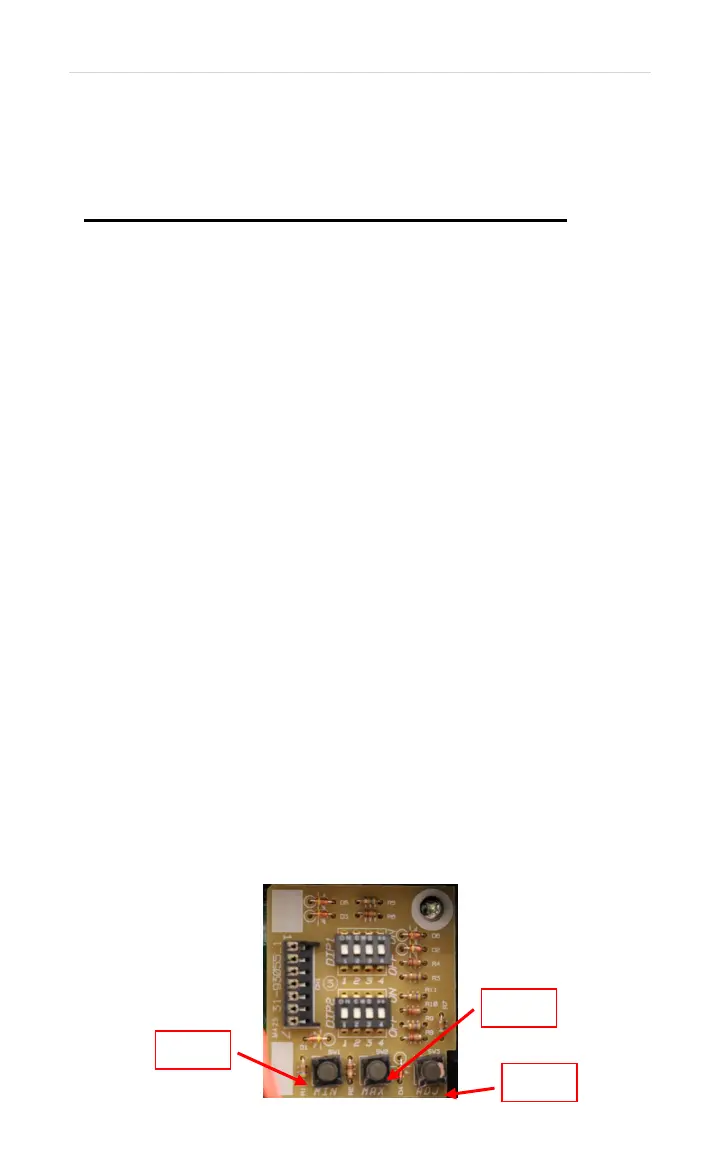

Adjustment of “MAXIMUM” Manifold Pressure Setting
on NEW Control Board
1. The setting value will display on the remote
control.
2. Push and hold down ADJ button.
3. While holding ADJ button, push (tap) the MAX
button. If recorded value DOES NOT agree with
current value, proceed to next step. If value
DOES agree, release the ADJ button and proceed
to “ADJUSTMENT OF ‘MEDIUM’ MANIFOLD
PRESSURE SETTING” step.
4. If adjustment is needed, push and hold down ADJ
button.
5. While holding the ADJ button, push the MAX
button.
6. The current number [01 – 39] will display on the
remote control.
7. Continue to push the MAX button until you get the
same value recorded during the “VERIFY
‘MAXIMUM’ MANIFOLD PRESSURE SETTING”
step.
8. WARNING: Every time you press the MAX button,
the display will cycle up to the number 39. Once
at 39, it will automatically reverse and cycle back
down to 01.
9. Release the ADJ button.
10. Continue to “ADJUSTMENT OF ‘MEDIUM’
MANIFOLD PRESSURE SETTING (SLOW
IGNITION POINT)” step.
To Next Page
