Turn Power OFF.
Remove and reinsert connector M, T, and
terminal on flame rod(s).
Turn Power ON.
While viewing through sight glass, operate unit to determine
IF flame is touching the flame rod(s).
Indoor models – 2 flame rods (Connectors M& T).
Outdoor models – 1 flame rod (Connector M).
Access maintenance mode
to check flame rod status &
continue to diagnostic chart
on next page.
YES
Remove any foreign debris.
IF foreign debris is not
present: CHECK GAS
SUPPLY & VENTING.
NO
(See maintenance mode instructions on page 21)

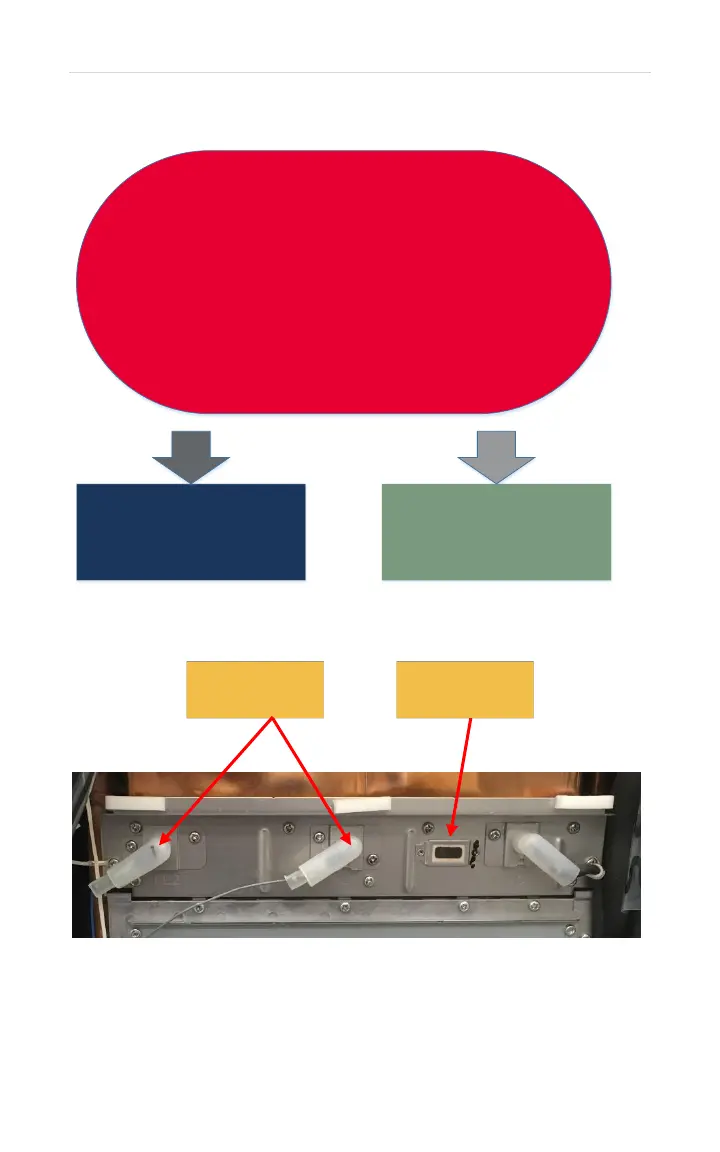

Flame Rod Diagnostics (flame IS visible)
SIGHT GLASS
FLAME ROD(S)
