RIB SUPER 2200 - System Layout and Component Identification; System Diagram and Part List; Technical Specifications

27
G
B

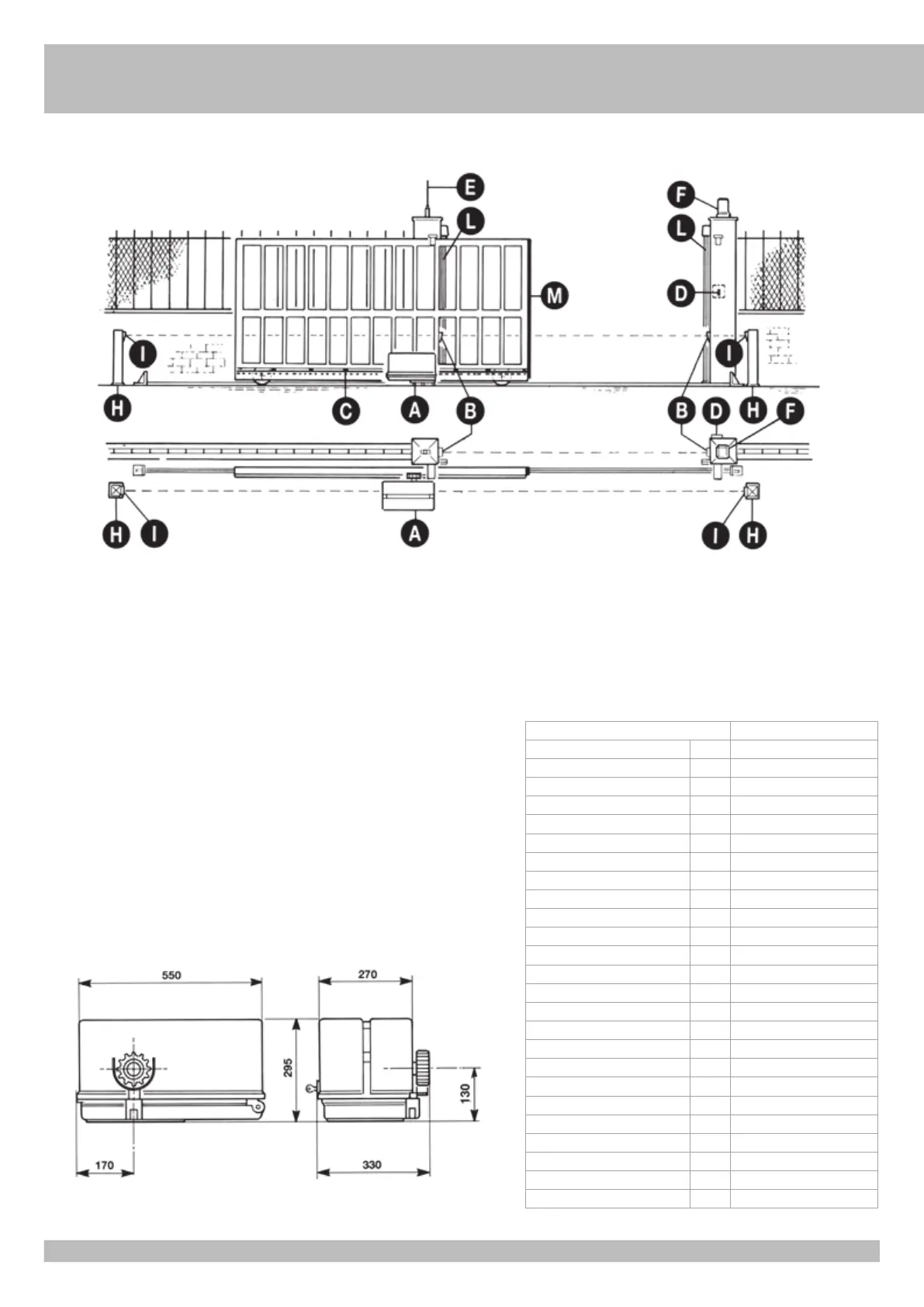

SYSTEM LAY-OUT
Mesures en mm/inch
11,6 “
13”
6,7”
11”
21,65”
5,11 “
TECHNICAL FEATURES
Irreversible operating devices for sliding gates with a maximum weight of 2200 kg/4.846lbs.
The irreversibility of this operating device allows you to avoid using any electric lock for an effective
closing of the gate. The motor is protected by an heat probe, that temporary interrupts the operating
cycle in case of prolonged use.
1
A - SUPER 2200 operator
B - Photoelectric cells (external)
C - Rack M4
D - Key selector
E - Tuned aerial
F - Flashing lamp
H - Galvanized column for P.E. cells
I - Photo electric cells (internal)
L - Safety strip fixed to column
M - Safety strip with system RED
TECHNICAL DATA SUPER 2200 VENTILATED
Max. leaf weight kg/lbs 2200/4846
Operating speed 0,173 m/sec - 0,57 ft/s
Rack 4
EEC Power supply 230V~ 50/60Hz
Thrust force to constant turns N/lbs 1060/234
Max torque Nm 31,8
Motor capacity W 369
Power absorbed A 2
Capacitor µF 16
Power supply 120V~ 60Hz
Thrust force to constant turns N/lbs 1100/2420
Max torque Nm 33
Motor capacity W 324
Power absorbed A 2,95
Capacitor µF 60
Normative cycles 230V n° 8-60s/2s
Normative cycles 120V n° 12-60s/2s
Daily operations suggested n° 500
Service % 70
Guaranteed consecutive cycles n° 15/10m
Lubrification Bechem - RHUS 550
Weight of electroreducer kg/lbs 25/55
Noise db <70
Working temperature °C -10 ÷ +55
Protection IP 55
