Clearing Misfeeds

104

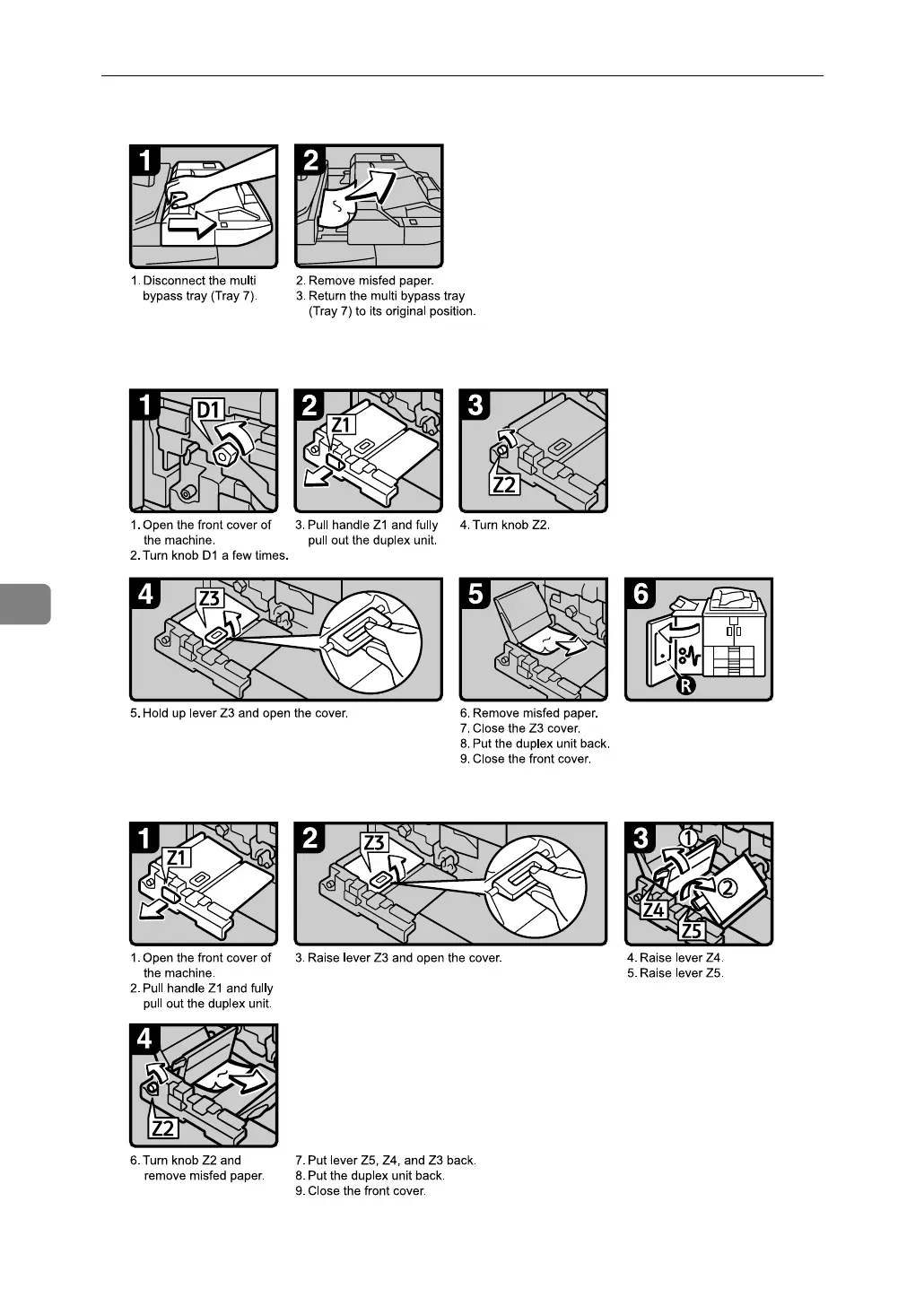

• When V is lit (when Multi Bypass Tray (Tray 7) is installed)

• When Z1 is lit

• When Z4 is lit

ANR020S

ANR009S

ANR010S
