Ricoh MD-P2 - Waste Toner Overflow Sensor

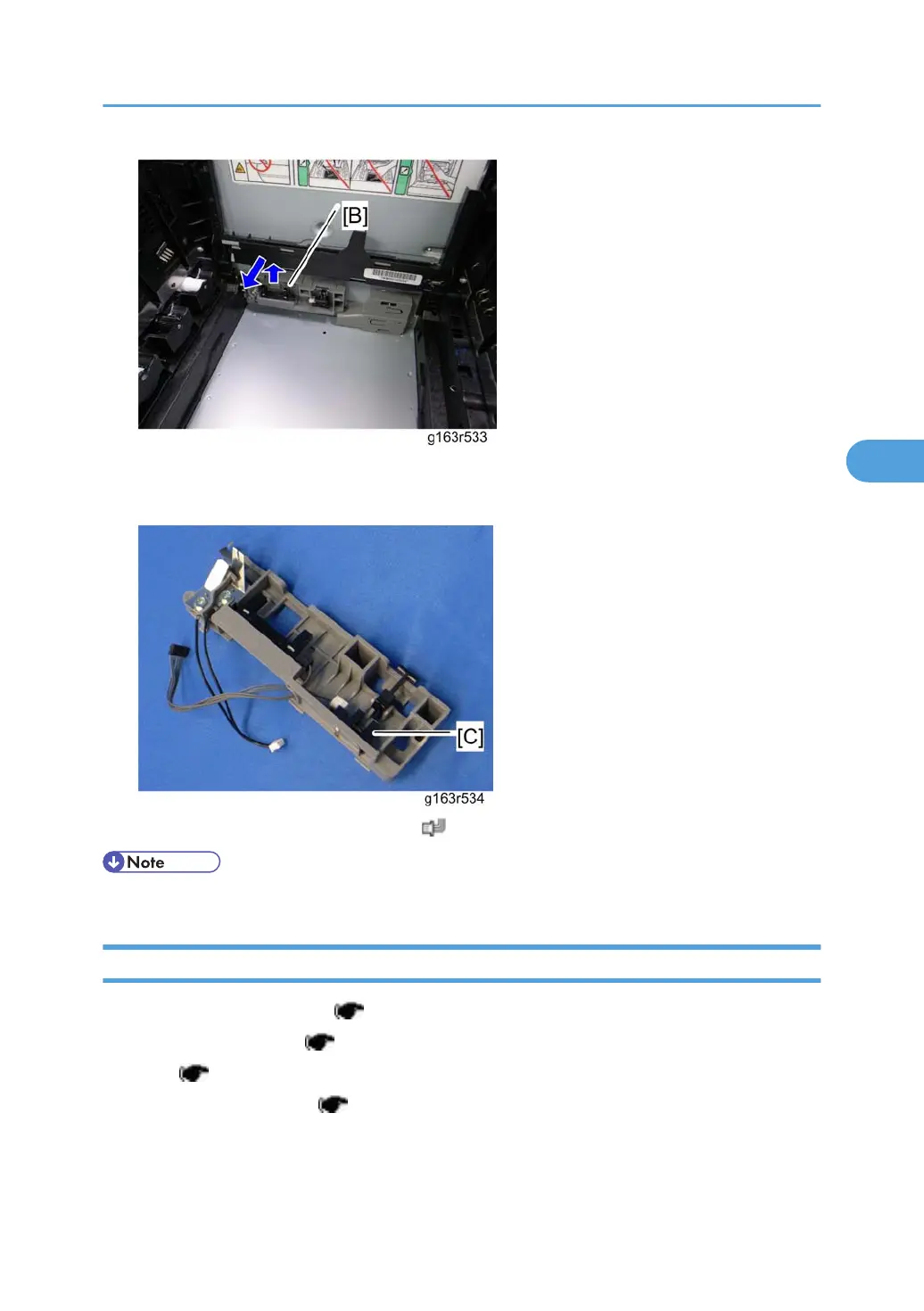

5. Waste toner sensor base [B]
6.
Remove the mylar at the bottom of the waste toner bottle set sensor.
7. Waste toner bottle set sensor [C] (hooks, x 1)
• When reinstalling the waste toner bottle set sensor, connect it to the white connector of the harness.
Waste Toner Overflow Sensor
1. Remove all AIO cartridges. ( p.36)
2.
Image transfer belt unit (
p.41)
3.
EGB (
p.79)
4.
Waste toner sensor base (
p.46 "Waste Toner Bottle Set Sensor")
